Panterra Fusion - Assembling the Clutch Housing

SPANNER
WRENCH
10mm
FIX NUT
5
4

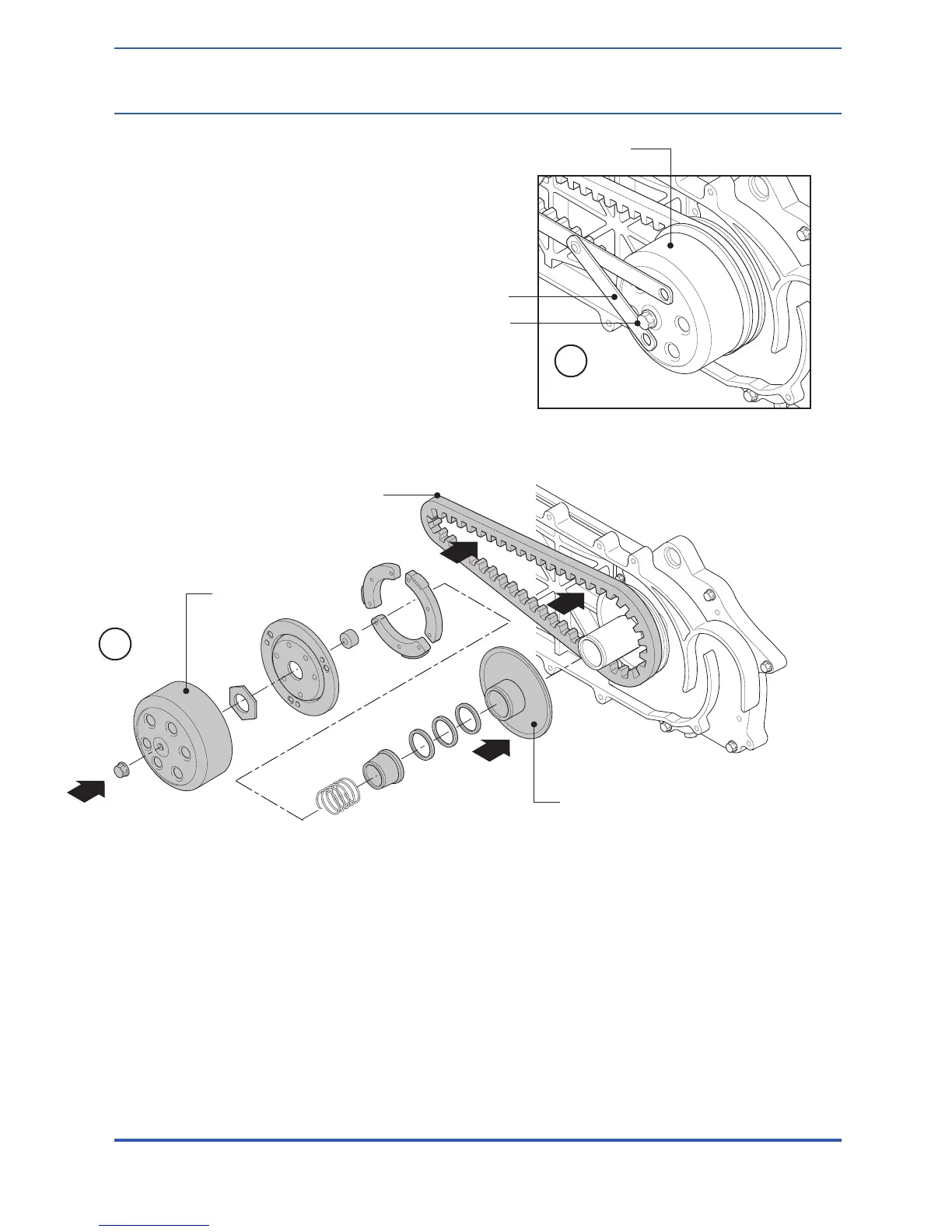

4. Assembling the clutch/transmission
pulley, put the driving belt onto the
clutch/transmission pulley, then onto the
driving shaft.
Assembling the Clutch Housing
5. Use a spanner wrench to hold the
housing, then install the 10mm (.39 in.)
nut and tighten it.
Torque: 5.5kg/m 38ft lbs
Assemble the left crankcase cover.
CLUTCH HOUSING
CLUTCH
HOUSING
CLUTCH TRANSMISSION PULLEY
DRIVING BELT
