9. Driving Belt Device & The Starting Lever
9-6
101
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 9: DRIVING BELT DEVICE & THE STARTING LEVER
20
2

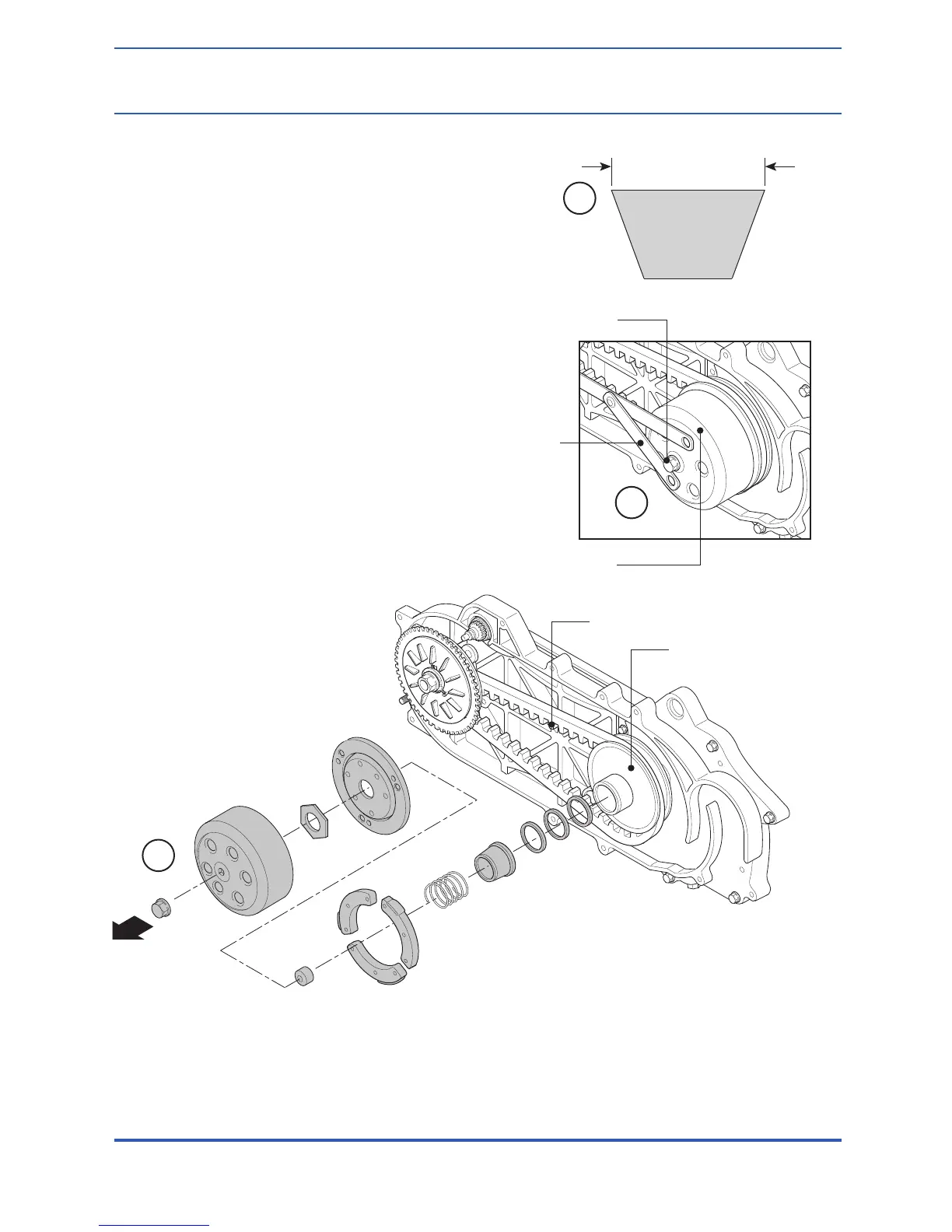

Checking the Driving Belt
1. Detach the left crankcase
cover.
2. Check if the driving belt is
cracked, frayed, or if there is
abnormal wear. Measure the width
of the belt. Maximum service
allowance: 17mm (.7 in.).
Replacing the Driving Belt
1. Remove the eight fix bolts,
then remove he crankcase cover.
2. Remove driving pulley. Use a
retaining device to hold the driving
pulley and screw out of the 10mm
(.39 in.) bolt.
3. Remove the driving pulley.
4. Remove the driving belt from
the clutch driving pulley.
2
CLUTCH HOUSING
FIX NUT
RETAINING DEVICE
OR SPANNER
WRENCH
DRIVING BELT
CLUTCH DRIVEN PULLEY
