IDLE SCREW
Valve Adjustment
Always check and adjust with
engine temperature lower than
35˚C (95˚F)

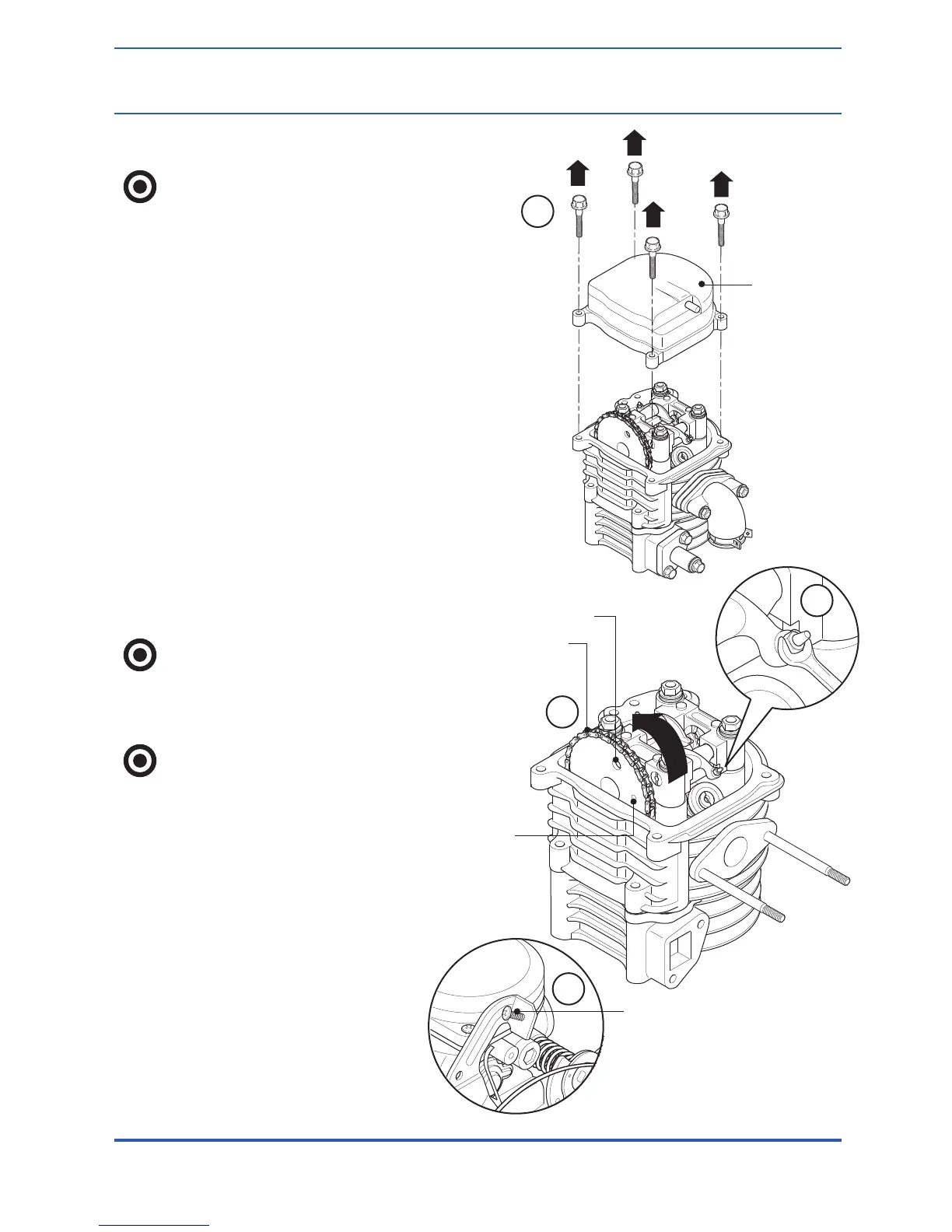

1. Remove cylinder head cover.
2. Rotate cooling fan to camshaft. Locate
mark at center top, aligning magneto
fly wheel mark with that on crankcase.
Magneto “T” mark and box crankshaft
mark.
Valve gap checking and
adjustment valve gap:
IN: 0.05mm (.00197 in.)
EX: 0.05mm (.00197 in.)
3. To adjust the valve gap, loosen am nut
and rotate adjusting nut.
Valve Adjustment Wrench
Be sure to check valve gap again,
after locking jam nut.
Carburetor Idle Speed
Idle adjustment should be made
with the engine warmed up.
1. Remove cover.
2. After the engine warms up, connect it
to an engine revolution counter.
3. Adjust idle screw until specified
revolution is obtained.
Minimum idling speed: 1900+190rpm
4. Readjust the screw if the idle speed
is not steady or fuel cannot be
properly applied.
2
3
HOLE IN CAM GEAR
AWAY FROM ENGINE
CAMSHAFT
CHAIN GEAR
"T" MARK
CYLINDER
HEAD COVER
1
3
3. Scheduled Maintenance
3-6
38
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 3: BODY COVER AND EXHAUST SYSTEM
