Headlight Removal and Installation
1. Remove the speedometer cover (refer
to 2-1).
2. Remove the headlight adjustable bolt.
3. Remove the alignment pin and
headlight.
4. Reverse the removal procedure for
installation.
Be sure to align the headlight
tab with groove in odometer
cover.
The headlight beam should be
adjusted after installation (3-12).
Bulb Replacement and Installation
1. Remove the speedometer cover.
2. Remove the headlight or front marker
light bulb for replacement.
3. Reverse the procedure for installation.
Taillight, brake light, rear position
light or license light
1. Remove the two screws in the rear
panel.
2. Remove the rear panel, two set
screws in rear light cover and light cover.
3. Remove the light bulb for replacement.
4. Reverse the procedure for installation.

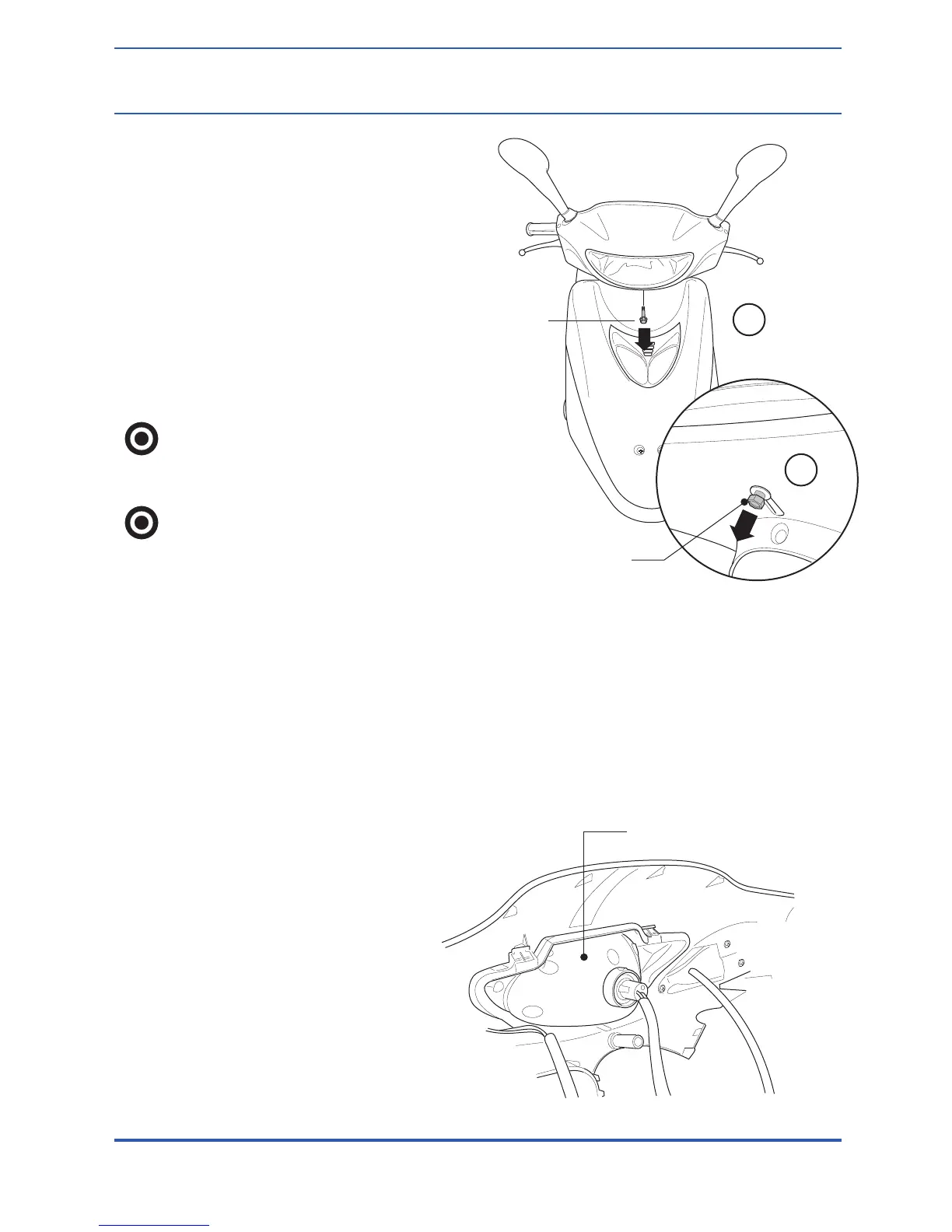

HEADLIGHT
ADJUSTABLE BOLT
2
ALIGNMENT PIN
HEADLAMP
3
UNDERSIDE OF COVER
