NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 17:METERS, SWITCHES AND LIGHTING SYSTEM
Replacing the horn switch:
1. Remove the front panel.
2. Remove the handlebar cover.
3. Disconnect the wire connector.
4. Remove switch from housing.
5. Reverse the removal procedure for
installation.

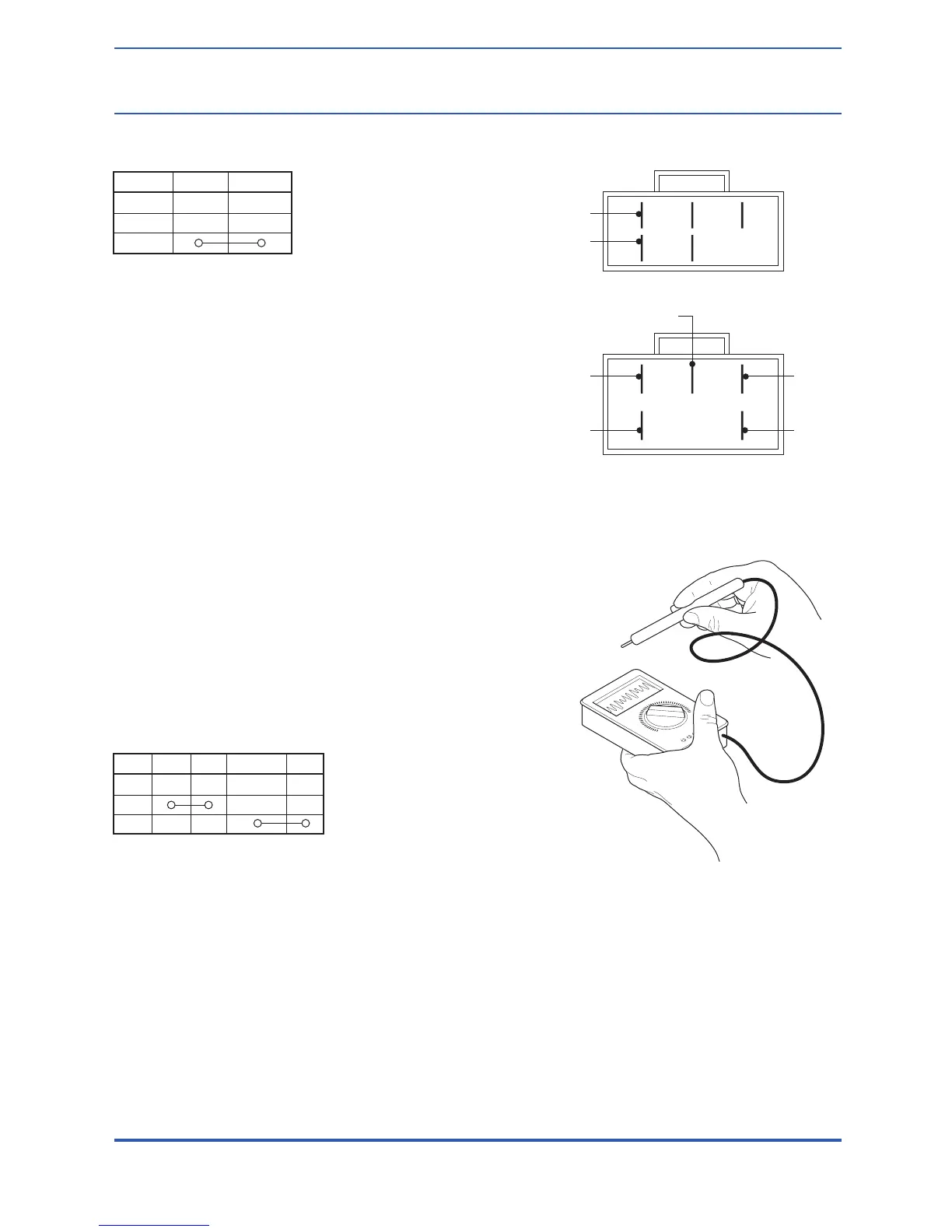

Main Switch Inspection
1. Remove the front panel.
2. Disconnect the main switch wire
connector to check the connection at each
terminal.
Replacing the main switch:
1. Remove the front panel.
2. Disconnect the main switch wire
connector.
3. Remove the two mounting bolts and
remove the main switch.
4. Reverse the removal procedure for
installation.
Main Switch
Color
Code R B B/W G
On
Off
Red Black Black/White Green
Hom Switch
Color Light Green BLACK
Code LG B
Released
Depressed
GREEN
GREEN
BLACK
LIGHT GREEN
BLACK
BLACK/
WHITE
RED
