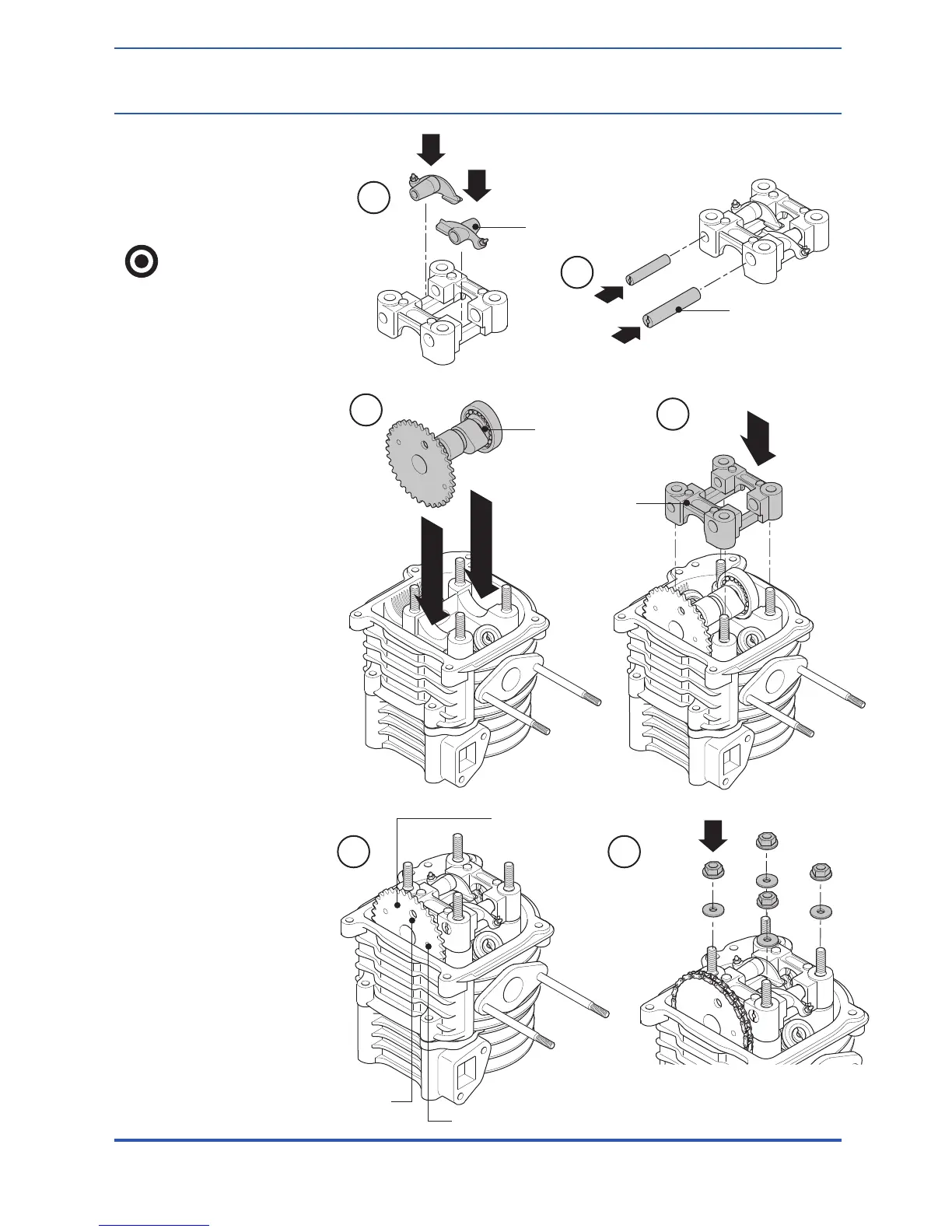

Camshaft Assembly
1. Assemble rocker arm
and rocker shaft.
Make alignment
between shaft end
and fixed screw
bolt hole of
camshaft seat
when valve rocker
shaft is assembled.
2. Install the camshaft into
the cylinder head. Seat the
camshaft into the fixed
seat and check alignment.
3. Install camshaft fixed
seat.
4. Rotate flywheel and
align “T” mark on flywheel
with crankshaft mark.
5. Align the camshaft
chain gear round hole away
from engine.
6. Install camshaft chain
on camshaft gear.
7. Assemble fixed studs.
8. Assemble camshaft
seat, space and nut into
cylinder head. Tighten
cylinder head nut and bolt
securely.
Torque valve:
Camshaft fixed nut:
2.0kg-m 15 ft lbs
2
4 8
1a
ROCKER ARMS
CAMSHAFT
3
1b
ROCKER SHAFT
CAMSHAFT
FIXED SEAT
HOLE IN CAM GEAR
AWAY FROM ENGINE
CAMSHAFT
CHAIN GEAR
"T" MARK
7. Cylinder Head Valve
7-15
85
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 7: CYLINDER HEAD VALVE
