CHAPTER 17:METERS, SWITCHES AND LIGHTING SYSTEM

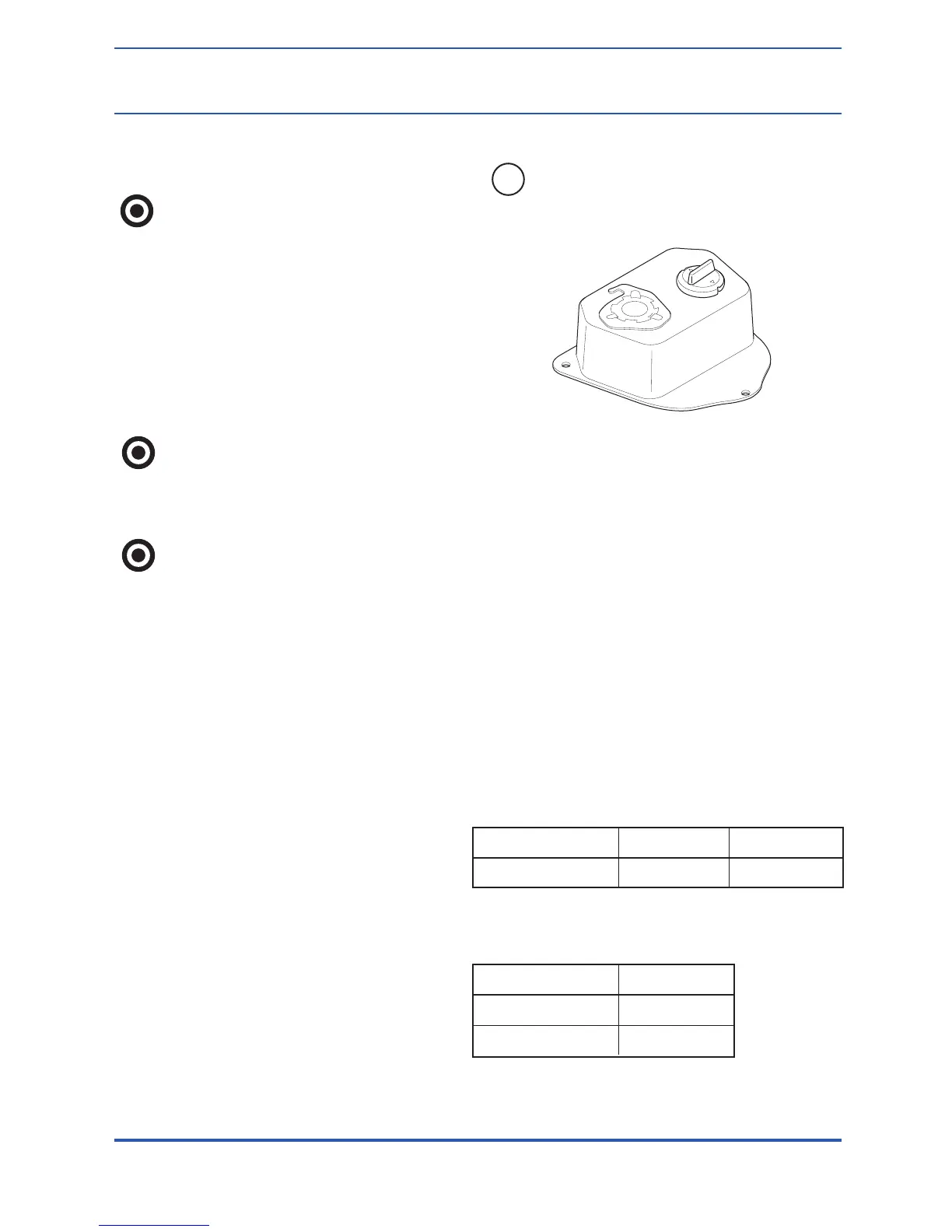

Fuel Sensor Removal
Avoid sparks and flames when working
on the fuel system.
1. Remove the middle luggage box.
2. Remove the right body panel.
3. Disconnect the fuel sensor from the wire
harness.
4. Remove the bolt of the fuel sensor.
Make sure not to damage the fuel
sensor lead.
5. Remove the fuel sensor.
Be sure that the fuel sensor float is not
beat.
Fuel Sensor Installation
6. Reverse the removal procedure for
installation.
7. Be sure to align the groove on the fuel
sensor with the mark on the fuel tank.
8. The mark on the sensor should be aligned
with that on the fuel tank.
Fuel Sensor Testing
1. Remove the fuel sensor.
2. Measure the resistance of each terminal
with the float in each position.
Fuel Gauge Inspection
With the ignition switch “ON,” connect the lead.
Turn on the turn signal to be sure the
battery-return circuit is intact before performing
the inspection. Check the gauge reading by
changing the float position.
Lead Terminal
7+/- 2 OHM 96+/- 2 OHMGree-Blue/White
Float Up Float Down
Float Position
F
E
Up
Down
Reading
4
