9. Driving Belt Device & The Starting Lever
9-13
108
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 9: DRIVING BELT DEVICE & THE STARTING LEVER
4
2
3

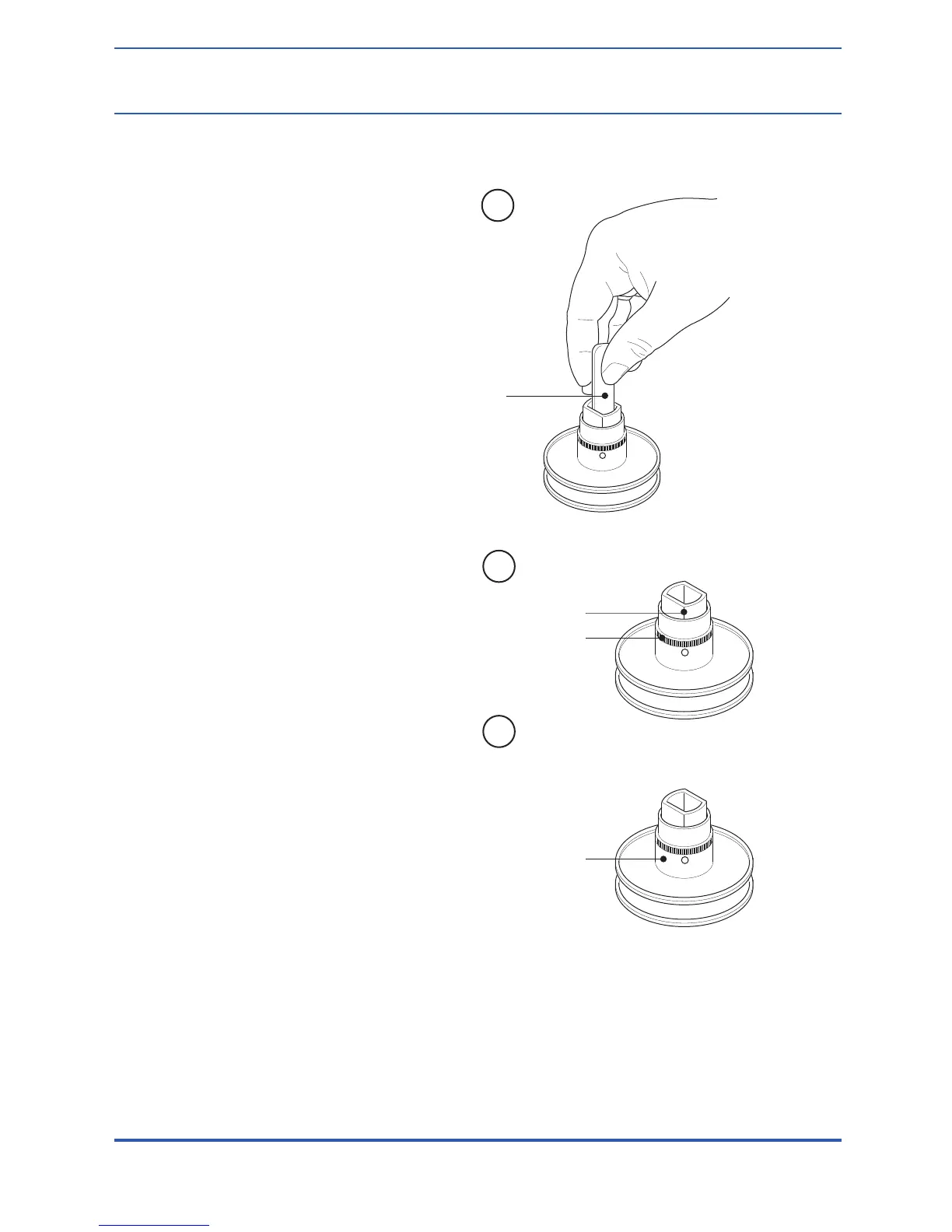

4. Drive in the new needle bearing,
keeping the “mark” side up.
The Clutch/Transmission Pulley
Assembly
1. Assemble the transmission pulley
guide pin and oil seal.
2. Install the sealing cover of the
collar.
3. Assemble the transmission pulley
disk and the spring to the clutch
assembly, pressing down with the
spring compressor for the clutch
spring.
4. Install the 28mm fix nut and
tighten it.
Torque: 5.0-6.0kg/m 35-40ft lbs
SEALING COVER OF
THE SHAFT COLLAR
O-RING
GUIDE ROLLING PIN
GUIDE LEVER OF
THE PULLER
