CHAPTER 9: DRIVING BELT DEVICE & THE STARTING LEVER
4
1
2a
2b

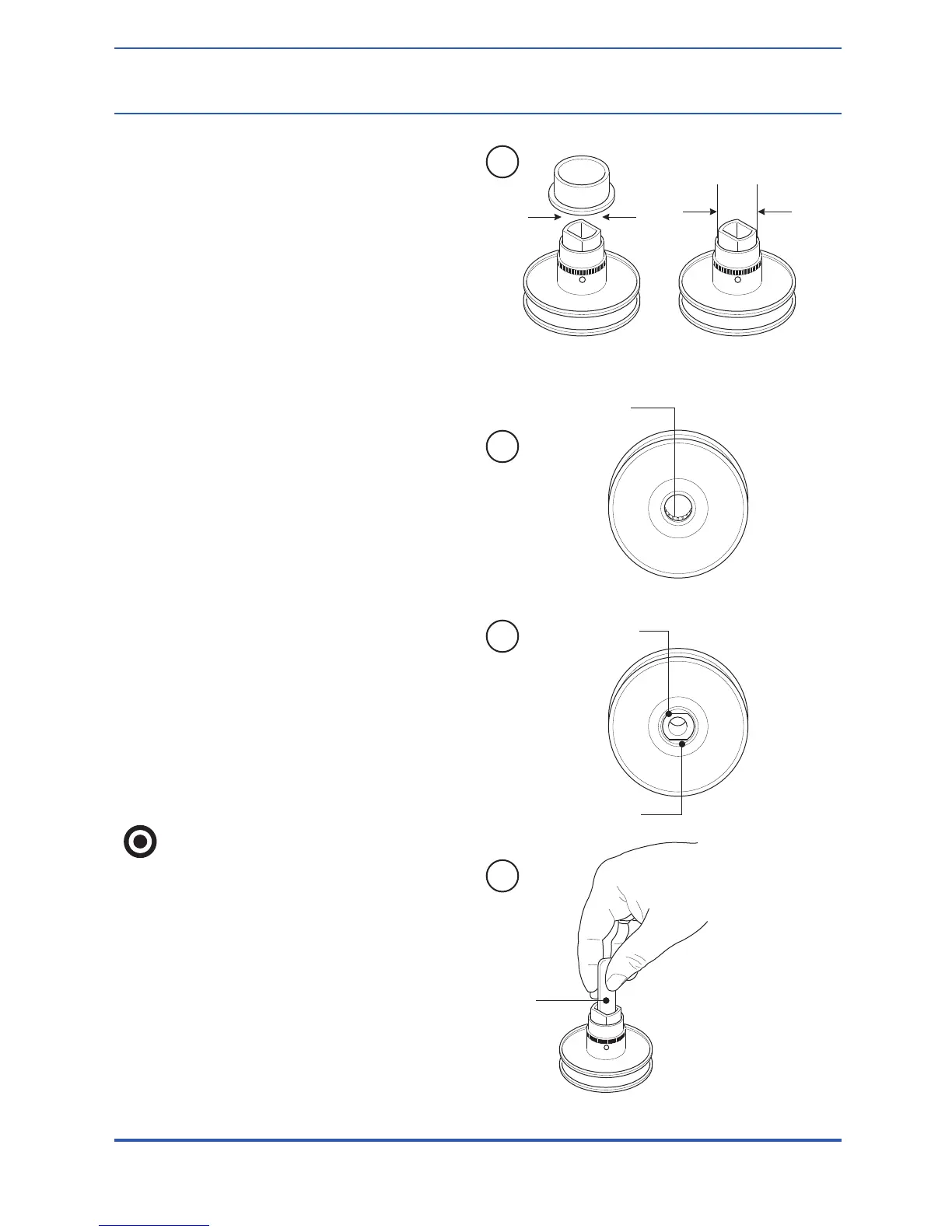

4. Check the wear of the transmission pulley.
Measure the OD of the pulley.
Maximum service allowance:
Replace when it is below 19.97mm
(.79 in.).
5. Check the wear of the transmission pulley.
Measure the ID of the pulley.
Maximum service allowance:
Replace when it goes beyond 24.24mm
(.95 in.).
6. Check if the guide rolling pin is excessively
worn or unevenly worn.
Replace as necessary.
Replacing the transmission pulley and the
bearing
1. Check the needle bearing for wear or
excessive free play, gritty feel or noise.
Replace as necessary.
2. Check the housing bearing for wear.
Remove the retainer and take out the housing
bearing.
3. Drive in the new housing bearing, keeping
the lid side up.
Attention:
Grease new bearings when
installing. Grease able to resist
> 230
˚
.
INNER BEARING
RETAINER FING
HOUSING BEARING
BEARING PULLER
