14. The Battery and the Charging System
14-12
157
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 14: THE BATTERY AND THE CHARGING SYSTEM

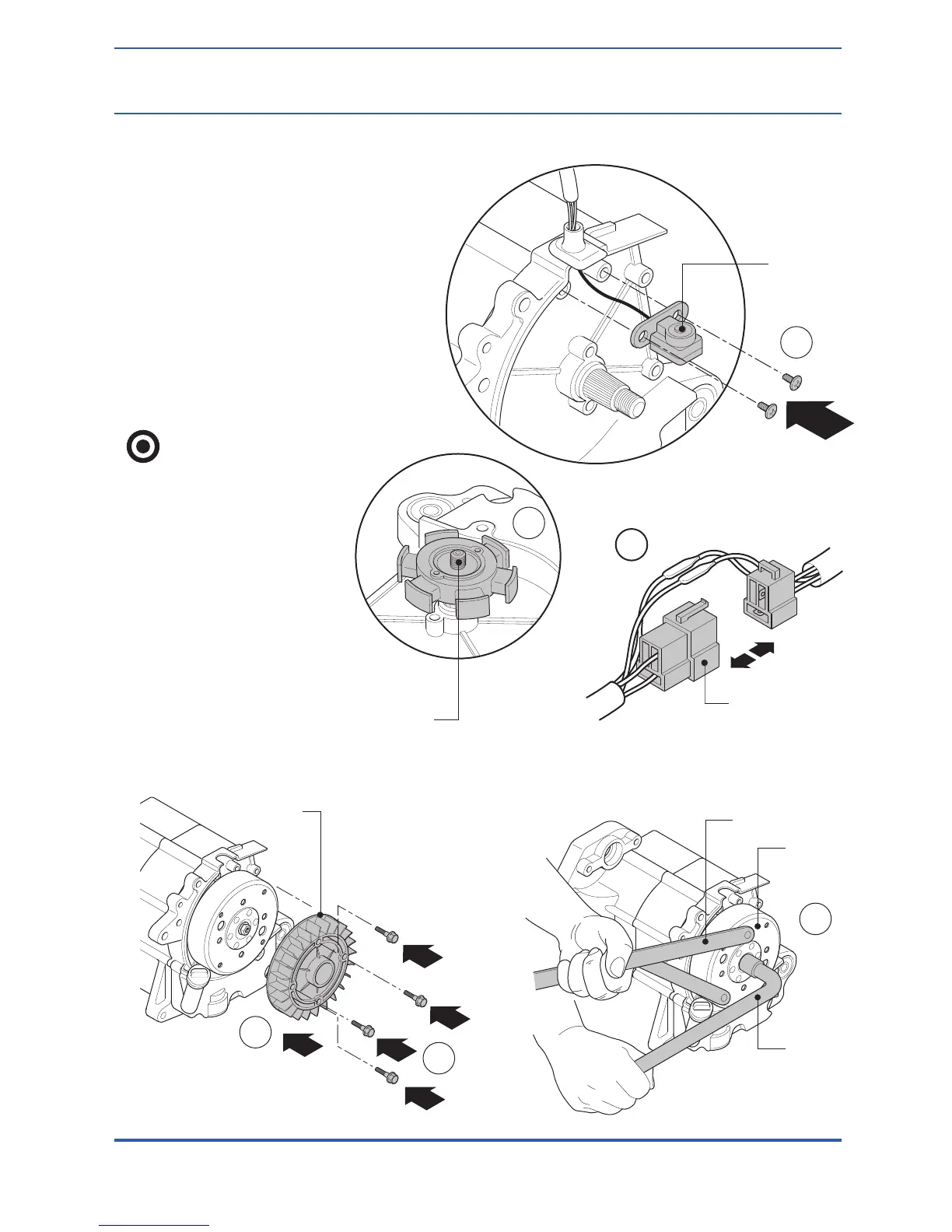

4. Connect the connecting
wire of the magnetor.
5. Clean the cone part of the
crankshaft and of the flywheel.
Be sure to lay the locating key
of the flywheel into the keyway
on the crankshaft precisely.
Point the groove of the flywheel
to the locating key on the
crankshaft and then assemble
it.
Attention:
Make sure that there
is no bolt/nut inside
the flywheel, and then
assemble it.
6. Use a universal solid wrench
to hold the flywheel, and then
lock the nut.
Torque: 3.8•m
7. Set up the cooling fan
Torque: 0.9kg•m
6
4b
5
FLY WHEEL
UNIVERSAL
WRENCH
SPANNER WRENCH
7a
COOLING
FAN
7b
MAGNETO
LOCATING KEY
CONNECTING PLUG
OFMAGNETO
4a
