4. Lubricating System
4-7
51
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 4: LUBRICATING SYSTEM
6
PULSE COIL

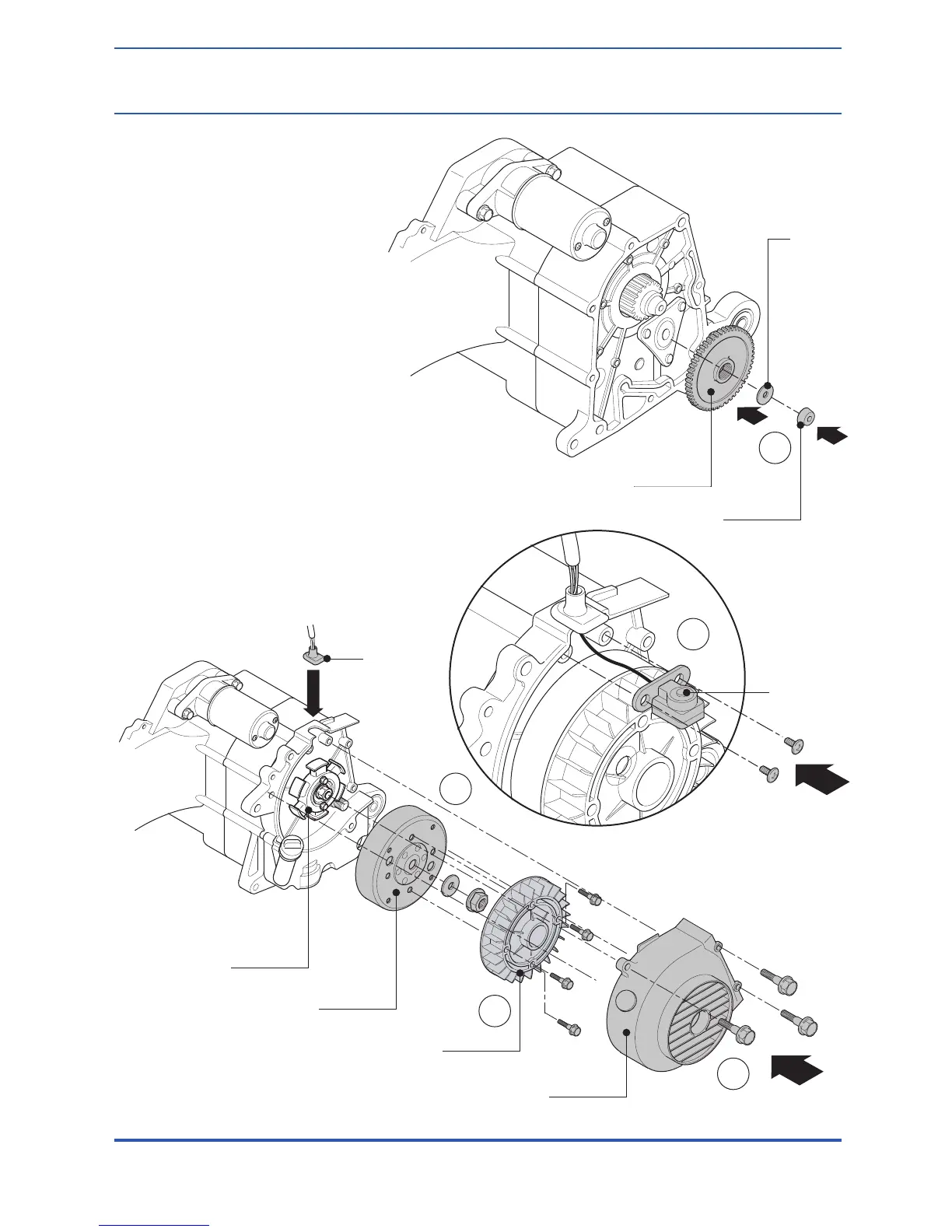

4. Install gear of oil pump and
then fix nut.
•Torsion value: 0.8-1.2kg-m
•7-8ft lbs
5. Assemble right crankshaft
case cover, 8 screws and tighten.
6. Assemble pulse coil, stator
and rotor.
7. Install fan and cover.
7
7
6
MAGNETOR COIL
FAN
FAN COVER
PULSE COIL
ROTOR
4
GEAR
WASHER
FIXED NUT
