NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 14: THE BATTERY AND THE CHARGING SYSTEM

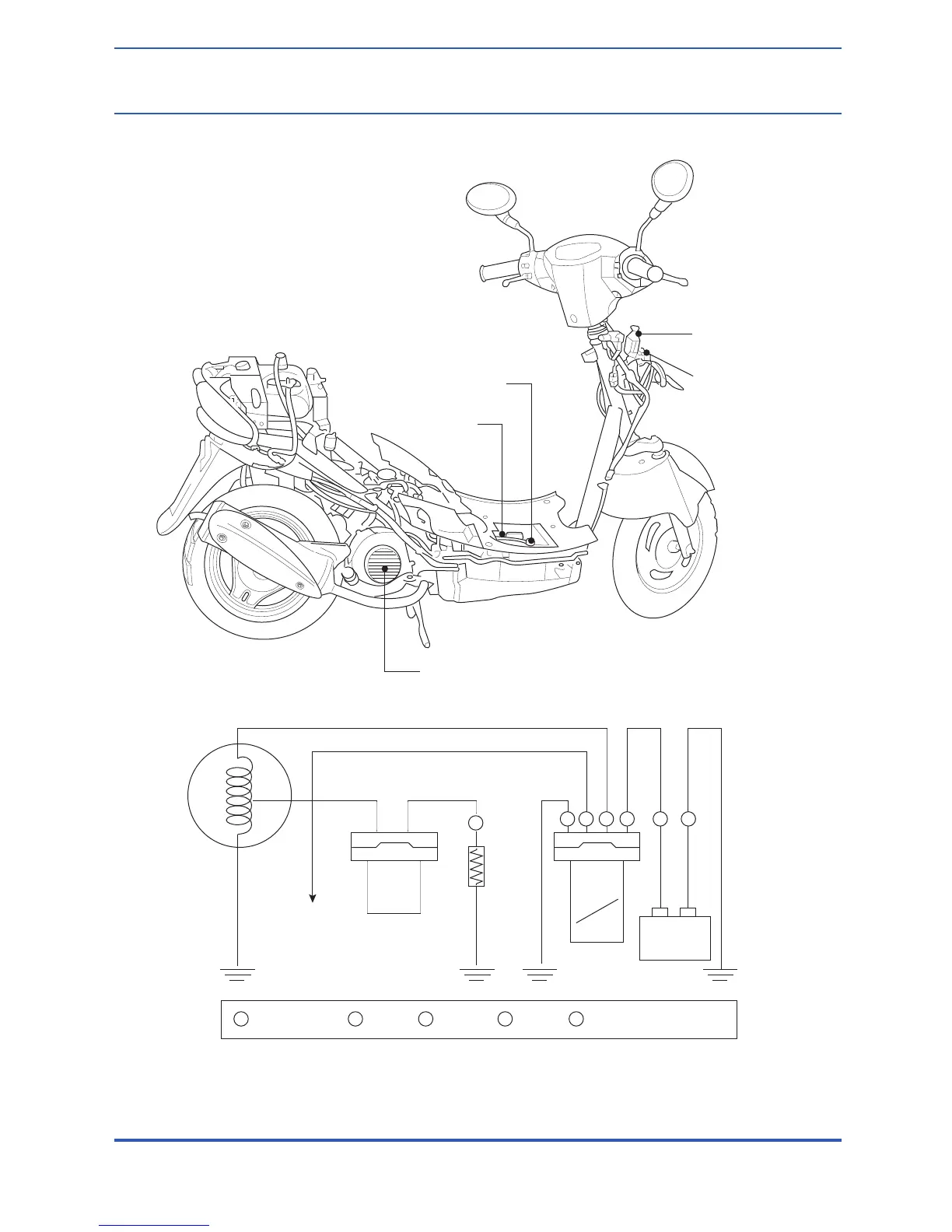

HEAD LAMP
SWITCH
RESISTOR
A.C. MAGNETO
AUTO
ENRICHER
RECTIFYING
VOLTAGE
10.2 OHM
5W
STABILIZER
G/Y
G Y W R R G
G/Y
GREEN/YELLOW
G
GREEN
Y
YELLOW
W
WHITE
G/Y
RED
+ -
BATTERY
12V4AH
RECTIFYING VOLTAGE
STABILIZER
A.C. MAGNETO
FUSE
RESISTOR
BATTERY
