CHAPTER 7: CYLINDER HEAD VALVE
6. Remove rocker arms and pivots.
7. Remove camshaft gear from camshaft
chain.
8. Remove camshaft.
9. Check Camshaft
10. Check cam lift.
•Use limit: IN: 25.681mm below change
•EX: 25.524mm below change
11. Check surface of cam lobes for weary
surface breakdown, scuffing or cracking.
12. Check camshaft and bearing for loose fit or
damage.
13. If any excessive wear or damage is found,
replace the camshaft.
6a
6b
8 9

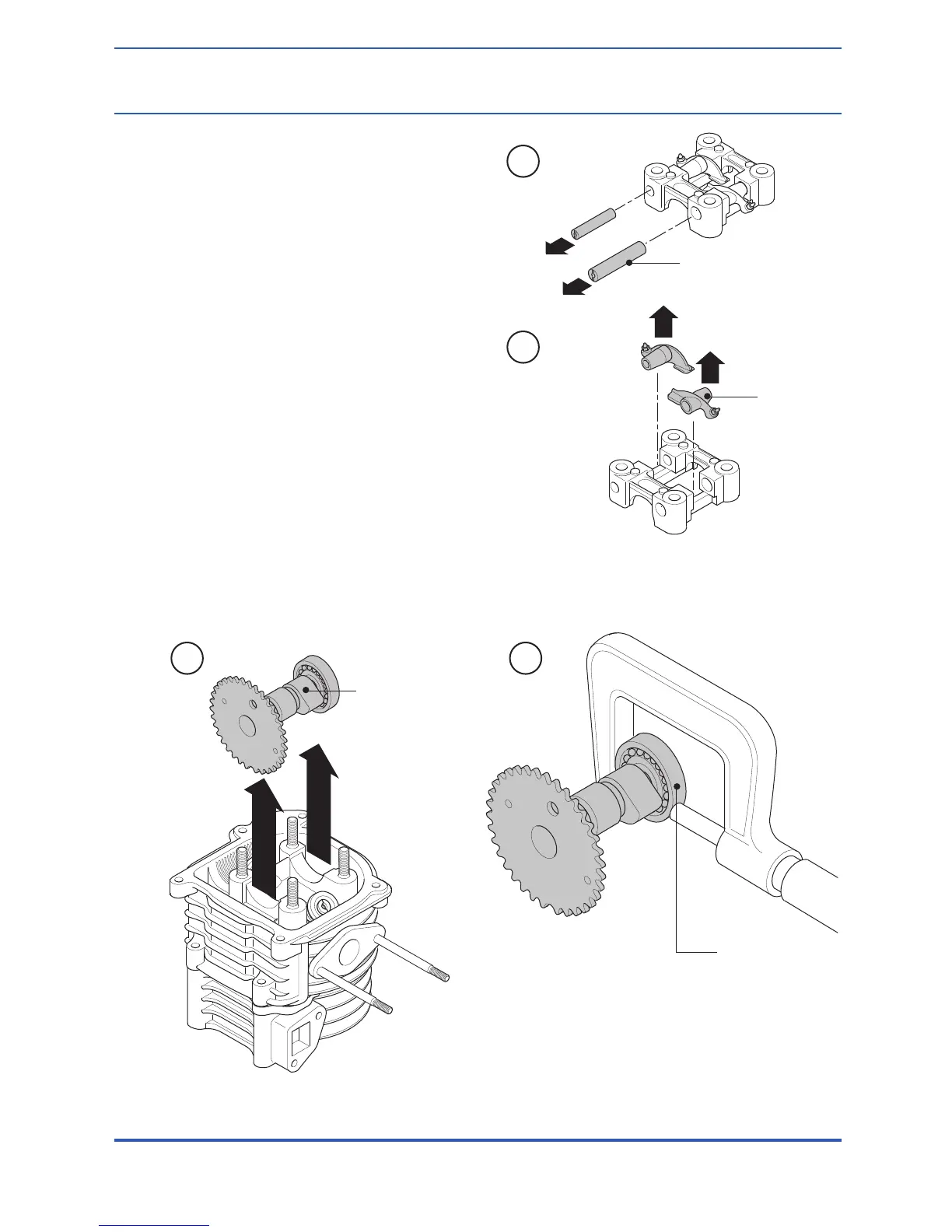

ROCKER ARMS
PIVOTS
CAMSHAFT
CAMSHAFT
BEARING
