CHAPTER 7: CYLINDER HEAD VALVE
4. Remove fan cover.
5. Remove bolt and screw
of engine cover.
6. Disassemble and
remove engine cover.

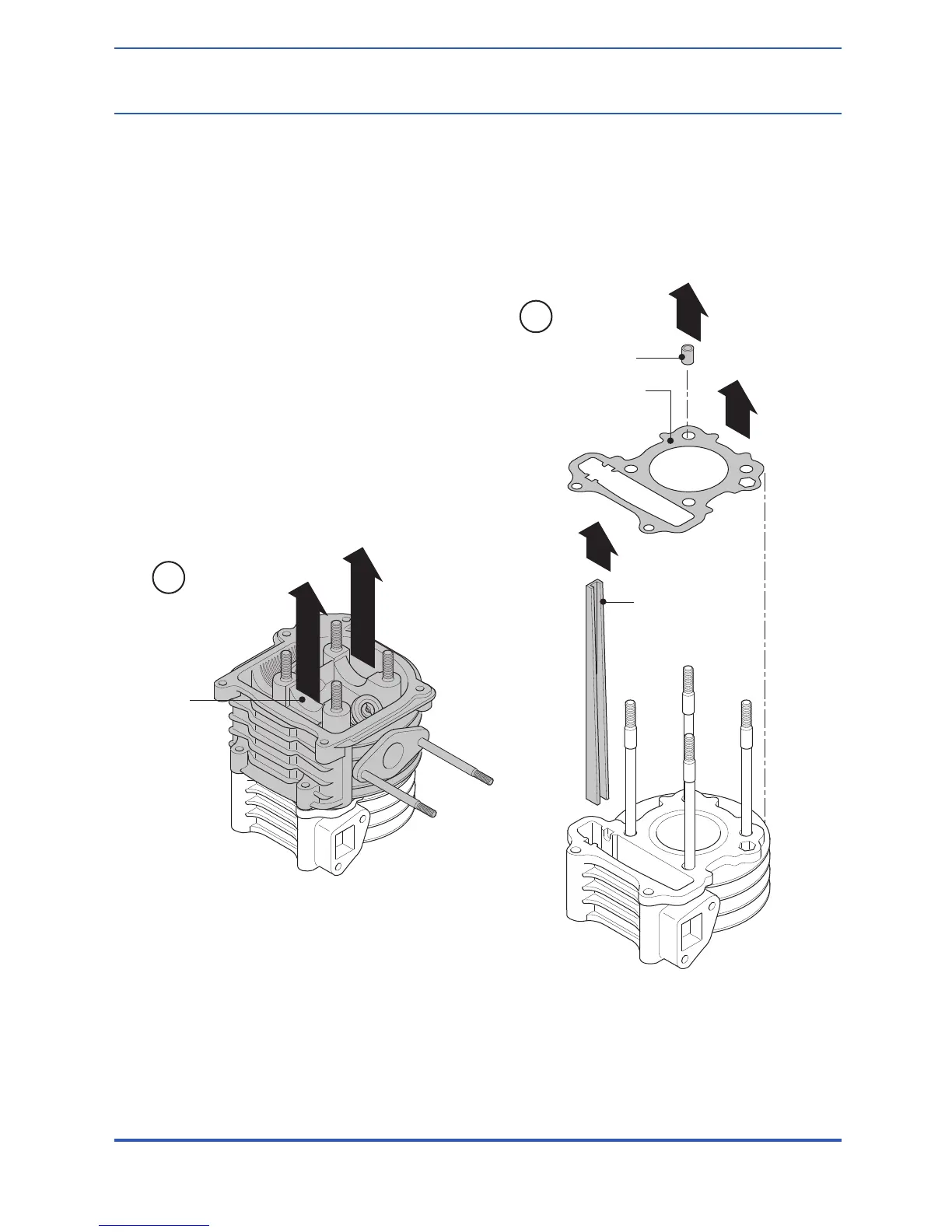

7. Pull up on cylinder head
to break gasket and slide off
cylinder stands.
8. Take off location pin and
cylinder head gasket.
9. Take off camshaft chain
guide bar.
7
CYLINDER HEAD
8
CYLINDER HEAD
GASKET
LOCATING PIN
CAMSHAFT
CHAIN GUIDE BAR
