8. Cylinder and Piston
8-8
95
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 8: CYLINDER AND PISTON

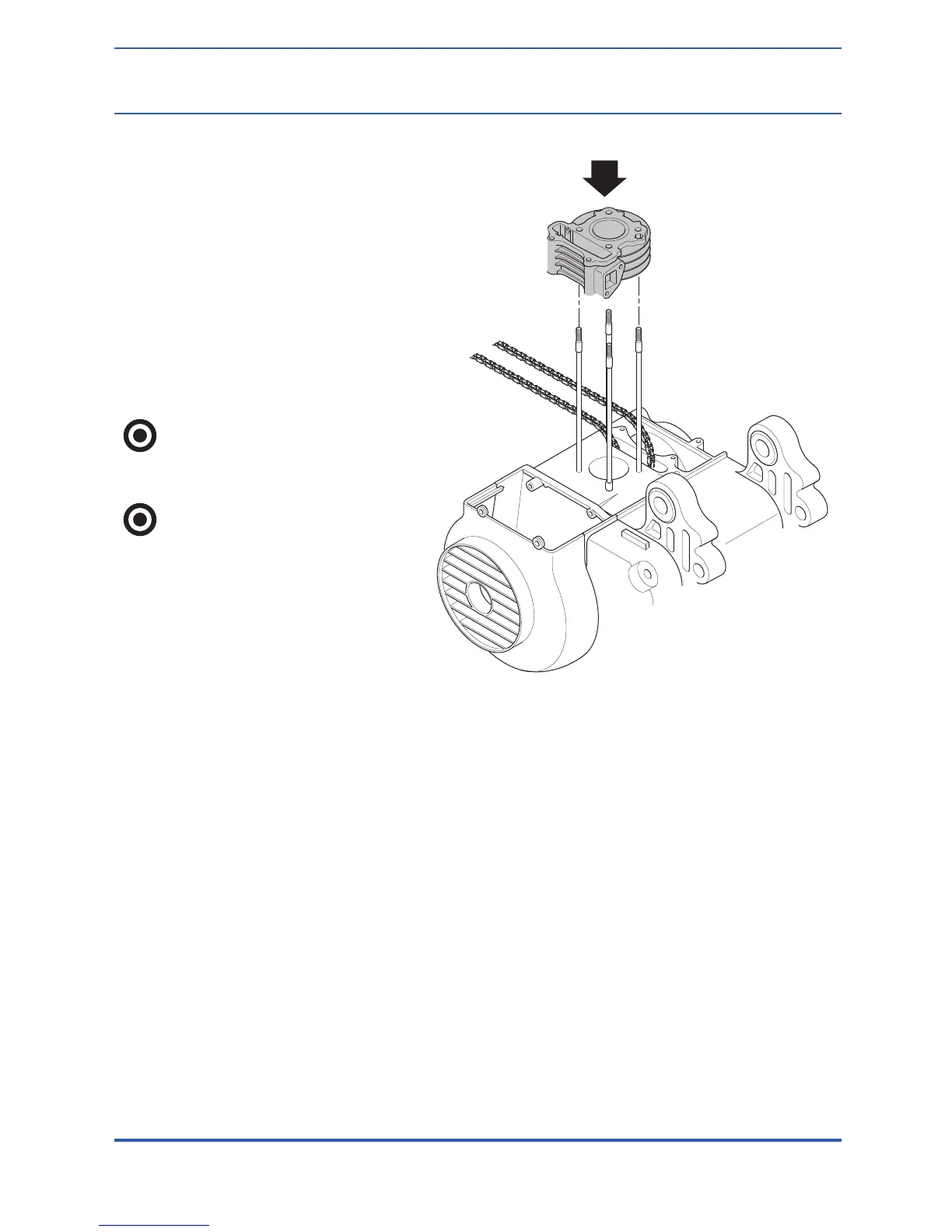

Assembling the Cylinder
3. Install the locating pin and the
gasket to the crankcase.
4. Coat the inner surface of the
cylinder, the piston and the piston ring
with oil.
5. When assembling the piston rings,
they must be compressed into the
cylinder.
Attention:
Don’t damage or break the
piston ring.
Be sure not to make the
position of the ring gap point
to the inlet and outlet valves
and parallel with the
piston ring.
