Parker Hannifin
P
S
eries User G
uide
162

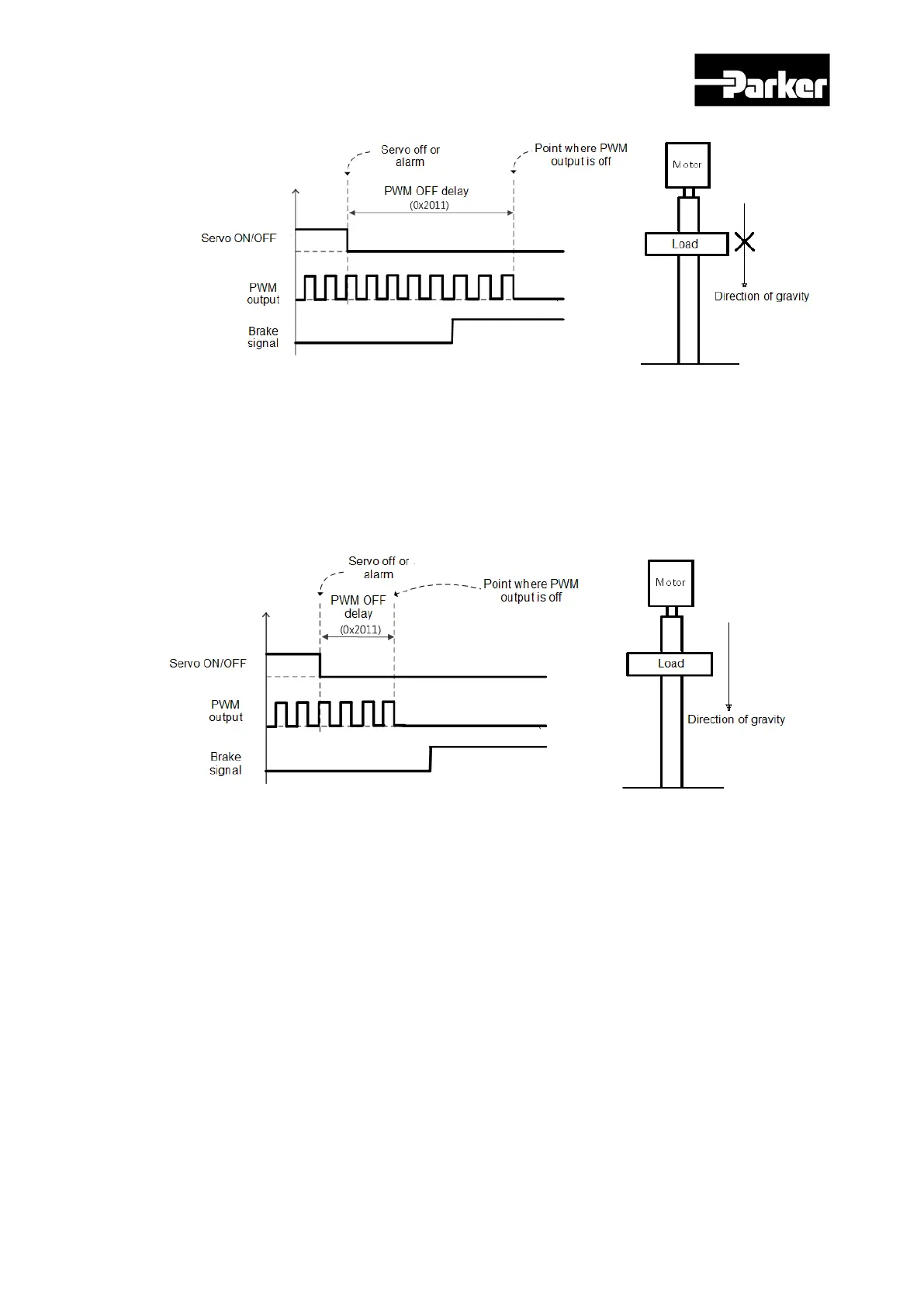

Cases where the brake
signal is first output and the PWM output is turned
off.
Y
ou can prevent vertical fall caused by the gravity by outputtin
g the brake signal before
turning
off the P
W
M outpu
t.
Cases where the PWM is turned off before the bra
ke signal is output.
W
hen
the P
W
M output is
turned of
f before the bra
ke signal output, the load
falls in the vertical
direction, pulled down by the
gravity
.
www.comoso.com
163
165
Table of Contents
