12
Workshop Manual, TSD3450E, Issue 1 125
2800
Coolant pump
To remove and to fit Operation 12-13
To remove
1 Drain the coolant from the engine into a suitable container for storage or disposal.
2 Remove the thermostat housing, Operation 12-10.
3 Remove the oil cooler, Operation 12-9.

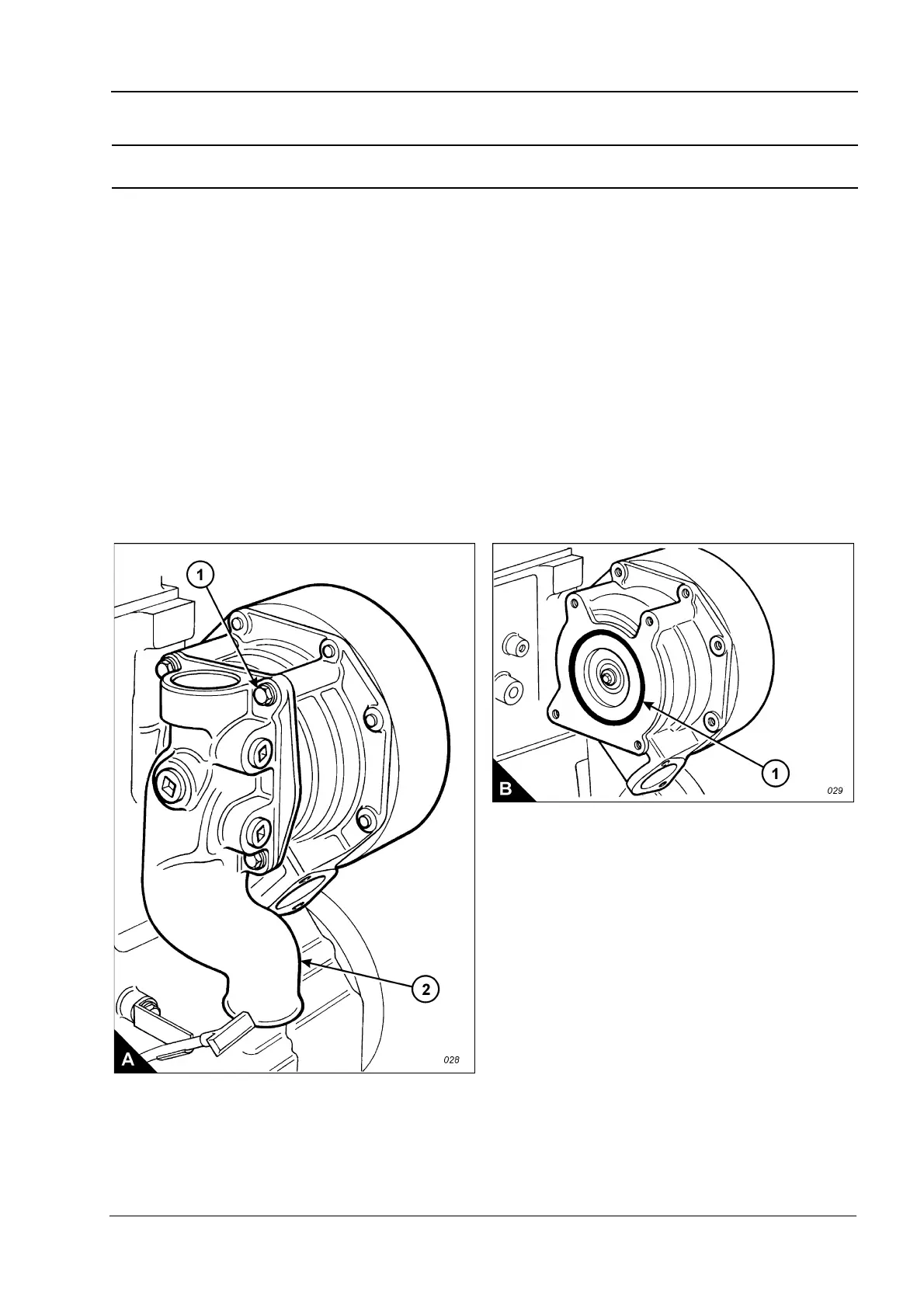

4 Remove four bolts (A1) and the elbow (A2).
5 Check the condition of the ‘O’ ring seal (B1), discard the seal if it is worn or damaged. Remove the bolts
from the gear case cover and the coolant pump and remove the coolant pump.
To fit
1 Fit the coolant pump to the gear case, ensure that the gear engages correctly. Tighten the bolts.
2 If necessary, fit a new ‘O’ ring seal (B1). Fit the elbow (A2) and retain with four bolts (A1).
3 Fit the oil cooler, Operation 12-9.
4 Fit the thermostat housing, Operation 12-10.
5 Fill the coolant system to the correct level with the specified coolant mixture. Refer to the User’s Handbook
for the correct procedure.
