Workshop Manual, TSD3450E, Issue 1 31
2800
To assemble

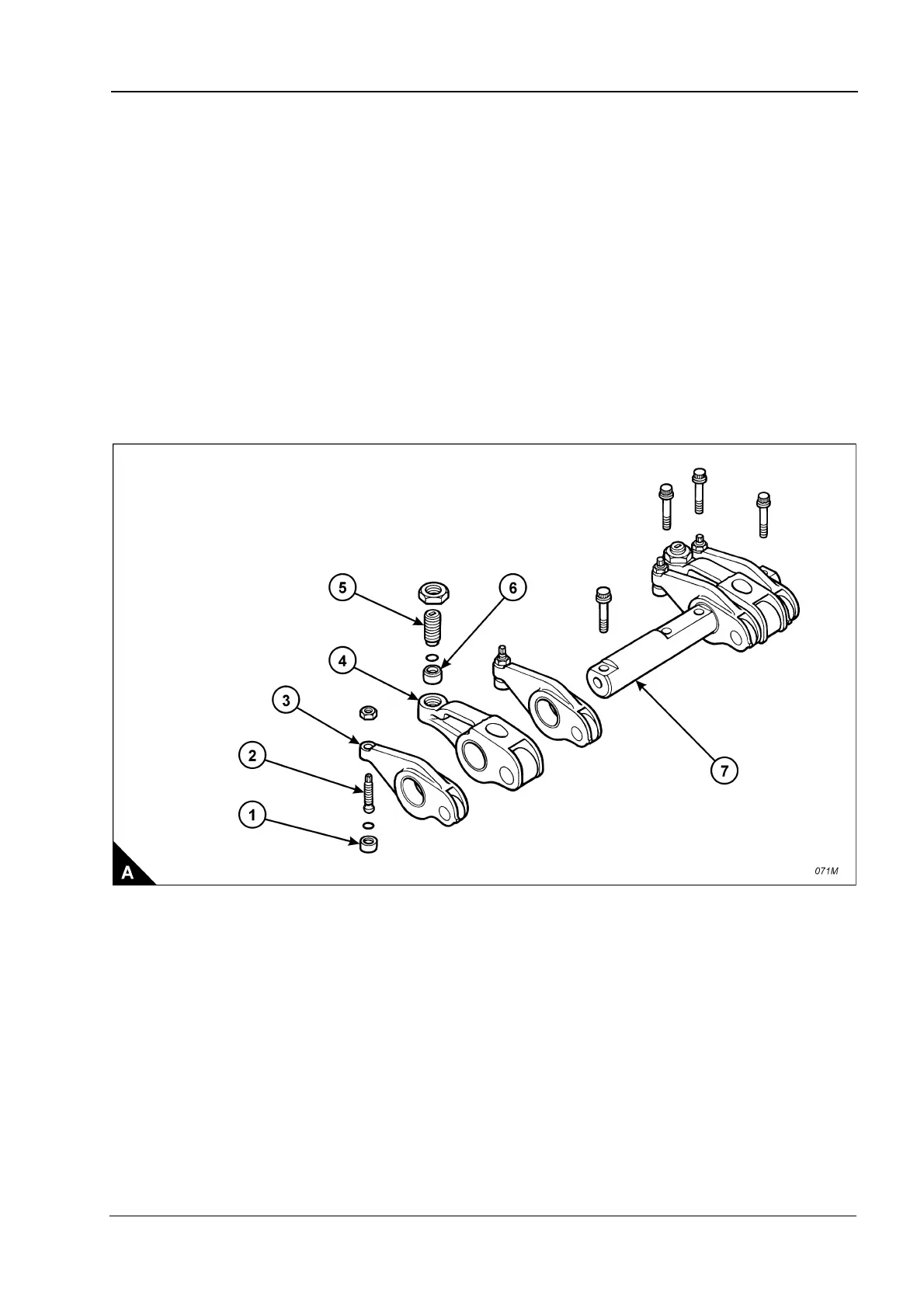

1 Install new ‘O’ ring seals in the buttons (A1).
2 Install new ‘O’ ring seals in the buttons (A6).
3 To fit the ‘O’ ring seals and buttons to the valve rocker levers, proceed as follows:
a. Support the valve rocker lever (A3) in a vice which has soft jaws.
b. Put the ‘O’ ring seal and button (A1) on the round end of the adjustment screw (A2).
c. Use a soft hammer to seat the button on the adjustment screw.
4 To fit the ‘O’ ring seals and buttons to the unit injector rocker levers, proceed as follows:
a. Support the unit injector rocker lever (A4) in a vice which has soft jaws.
b. Put the ‘O’ ring seal and button (A6) over the end of adjustment screw (A5).
c. Use a soft hammer to seat the button on the adjustment screw.
5 Repeat steps 3 and 4 for the rocker levers which remain.
6 Fit the assembled rocker levers to the shafts (A7). Ensure that they are fitted to their original positions.
