Workshop Manual, TSD3450E, Issue 1 45
2800
Camshaft
To remove and to fit Operation 3-10
Special requirements
To remove
1 Remove the radiator, Operation 12-4.
2 Remove the fan, Operation 12-5.
3 Remove the gear case cover, Operation 6-1.
4 Remove the rocker cover, Operation 3-1.
5 Remove the rocker lever and shaft assemblies, Operation 3-2.

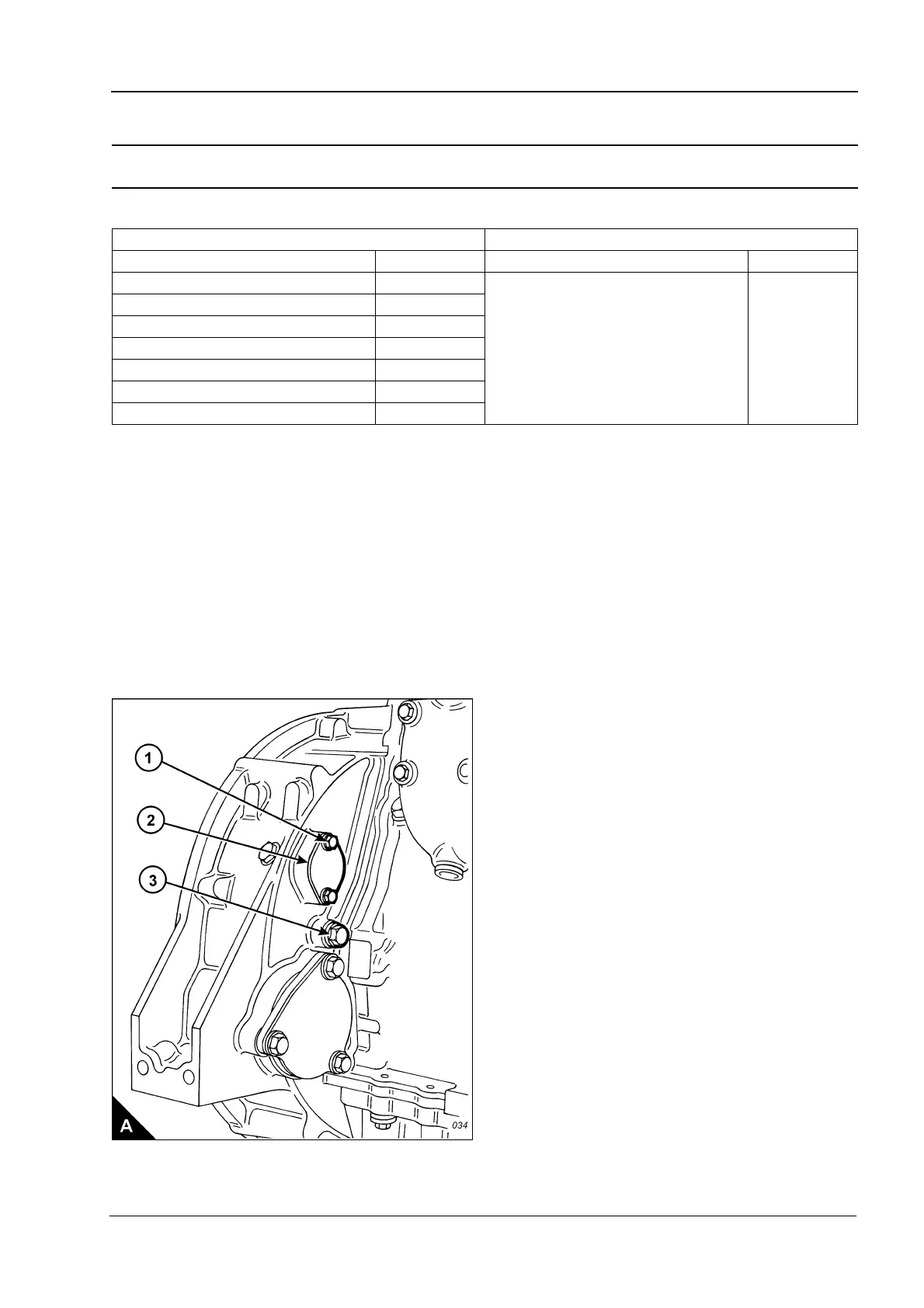

6 Remove the top bolt (A1), the timing bolt, from the cover (A2) on the flywheel housing and slacken the other
cover bolt to allow the cover to open.
7 Remove the plug (A3) from the timing bolt location in the flywheel housing and fit the timing bolt.
Note: There are two locations for the timing bolt, one at each side of the flywheel housing. Use the location
which is the most convenient.
Continued
Special tools Consumable products
Description Part number Description Part number
Engine turning tool CH11148 Thread lock compound (10 ml) 21820 117
Guide stud GE50019
Cradle tool GE50018
Camshaft guide GE50017
Pilot GE50015
Lifting hooks GE50025
Alignment sleeve GE50016
