134 Workshop Manual, TSD3450E, Issue 1
2800
Starter motor
To remove and to fit Operation 14-1
To remove
Note: To assist with the assembly operation, identify and mark the positions of all wiring before it is
disconnected.
1 Disconnect the batteries before any service work is attempted.

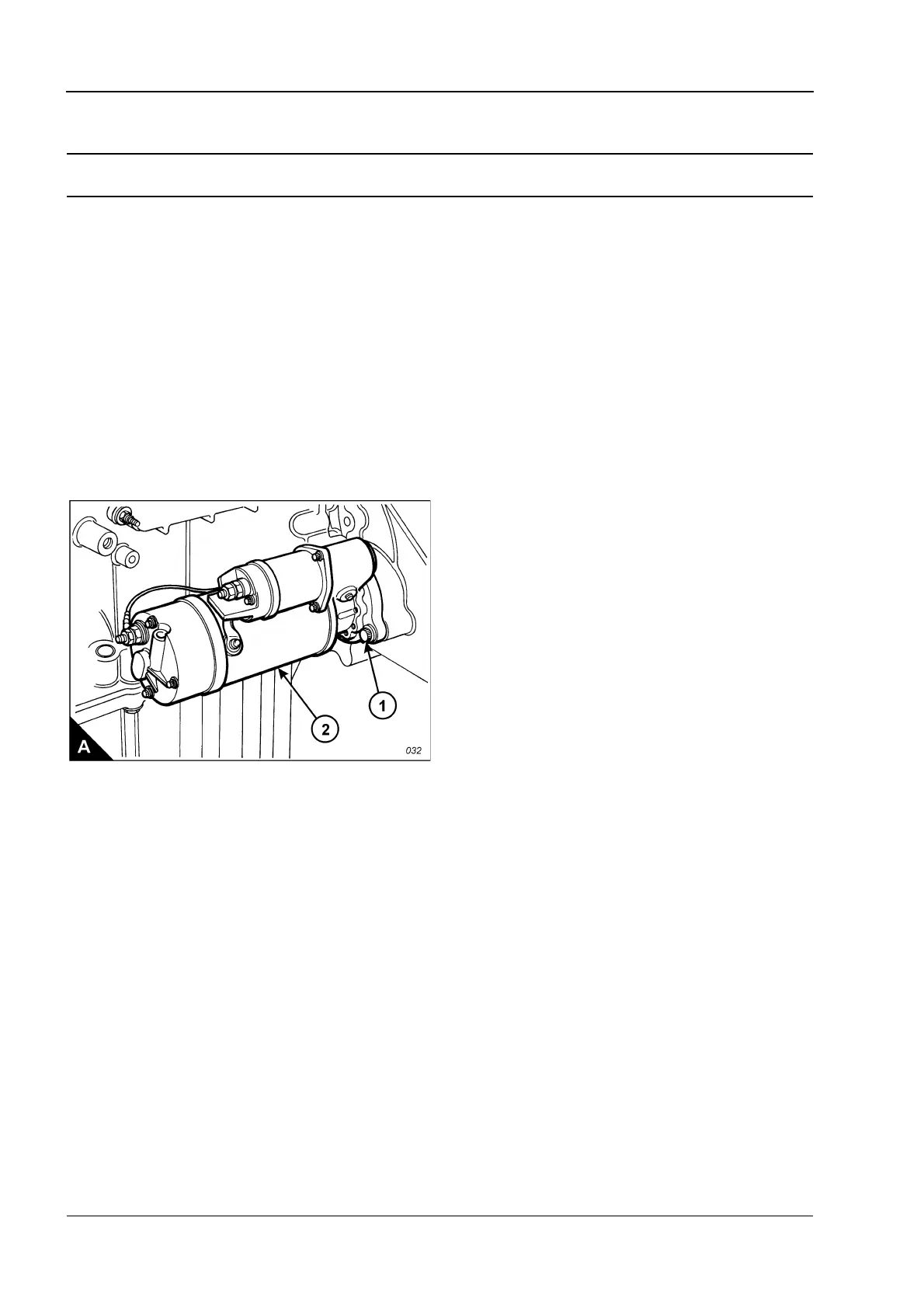

2 Disconnect the wiring loom from the starter motor assembly (A2).
3 Fasten a hoist to the starter motor. Remove the three bolts (A1) which retain the starter motor on the flywheel
housing, then withdraw the starter motor from the housing. The weight of the starter motor is 32 kg (70 lb).
To fit
1 Use a hoist to support the starter motor. Fit the starter motor to the flywheel housing. Retain with three bolts.
2 Connect the wiring loom to the starter motor. If the engine earth strap is connected to the starter motor,
tighten the nut which retains the earth strap to a torque of 30,5 +/- 3,5 Nm (22.5 +/- 2.5 lbf ft).
3 Connect the batteries.
