Crankshaft vibration damper
To remove and to fit Operation 5-4
To remove
1 Remove the fan guards.

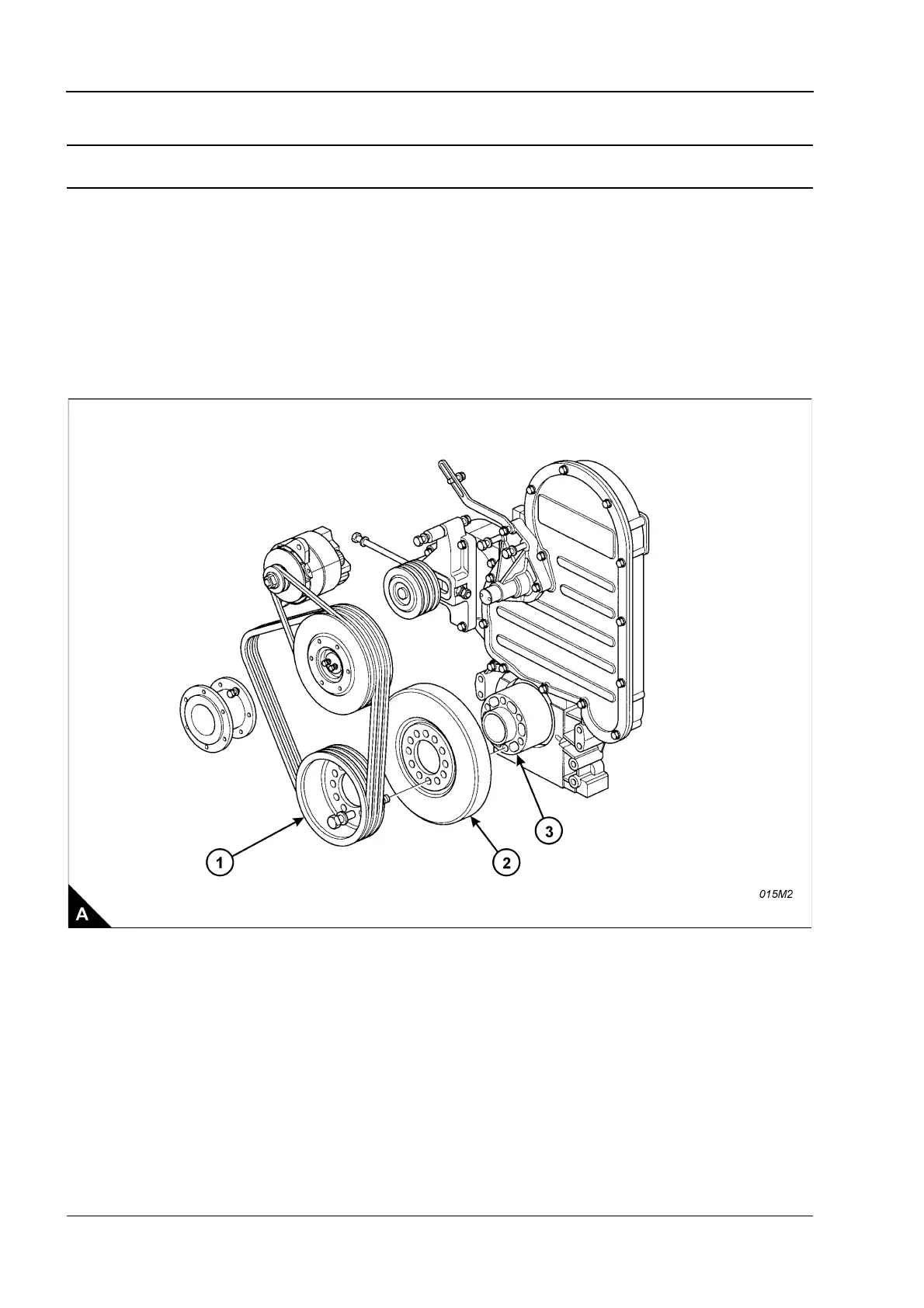

2 Slacken the tension on the fan drive belts, then remove the belts from the crankshaft pulley (A1).
3 Attach a strap and a suitable lifting device to the vibration damper (A2). Remove the six bolts and washers
which retain the vibration damper and the adapter (A3) to the crankshaft.
4 Remove damper and adapter. The weight of the vibration damper is approximately 25 kg (55 lb).
Note: The dash marks at the front of the damper assembly must be in alignment with each other. If the dash
marks are not in alignment, renew the damper assembly.
