To fit

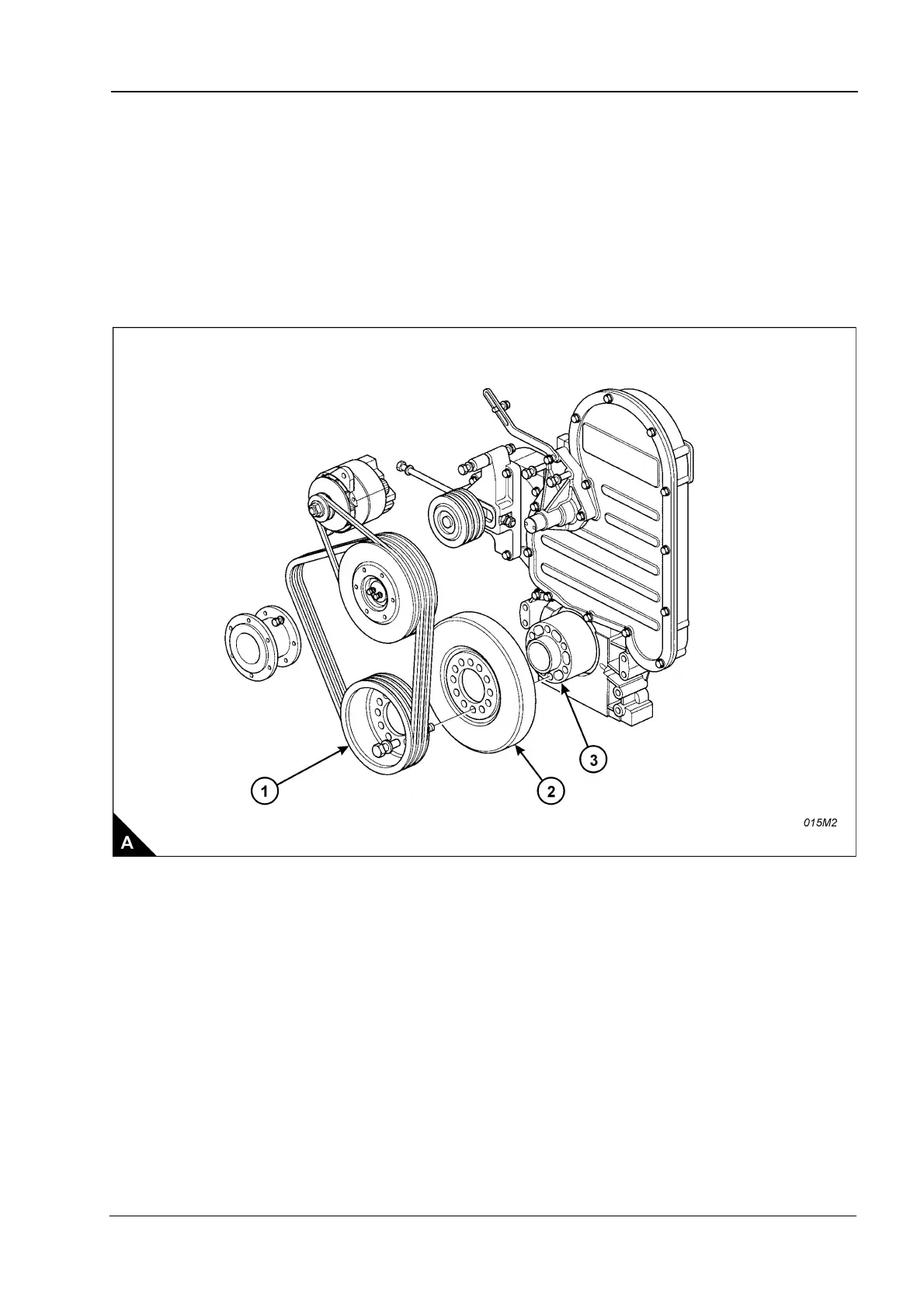

1 Attach a strap and a suitable lifting device to the vibration damper (A2). Use a 5/8 -18 x 6 in (152 mm) long
guide stud, and fit the vibration damper (A2) and adapter (A3) to the crankshaft. The weight of the vibration
damper is approximately 25 kg (55 lb).
2 Fit the crankshaft pulley (A1). Apply clean engine oil to the threads of the bolts and install five of the six bolts
and washers which retain the pulley, the damper and the adapter.
3 Remove the guide stud and install the final bolt and washer. Tighten the bolts to a torque of 215 Nm
(158 lbf ft).
4 Fit the fan belts and adjust the tension as given in Operation 12-7.
5 Fit the fan guards.
