Rocker cover
To remove and to fit Operation 3-1
To remove

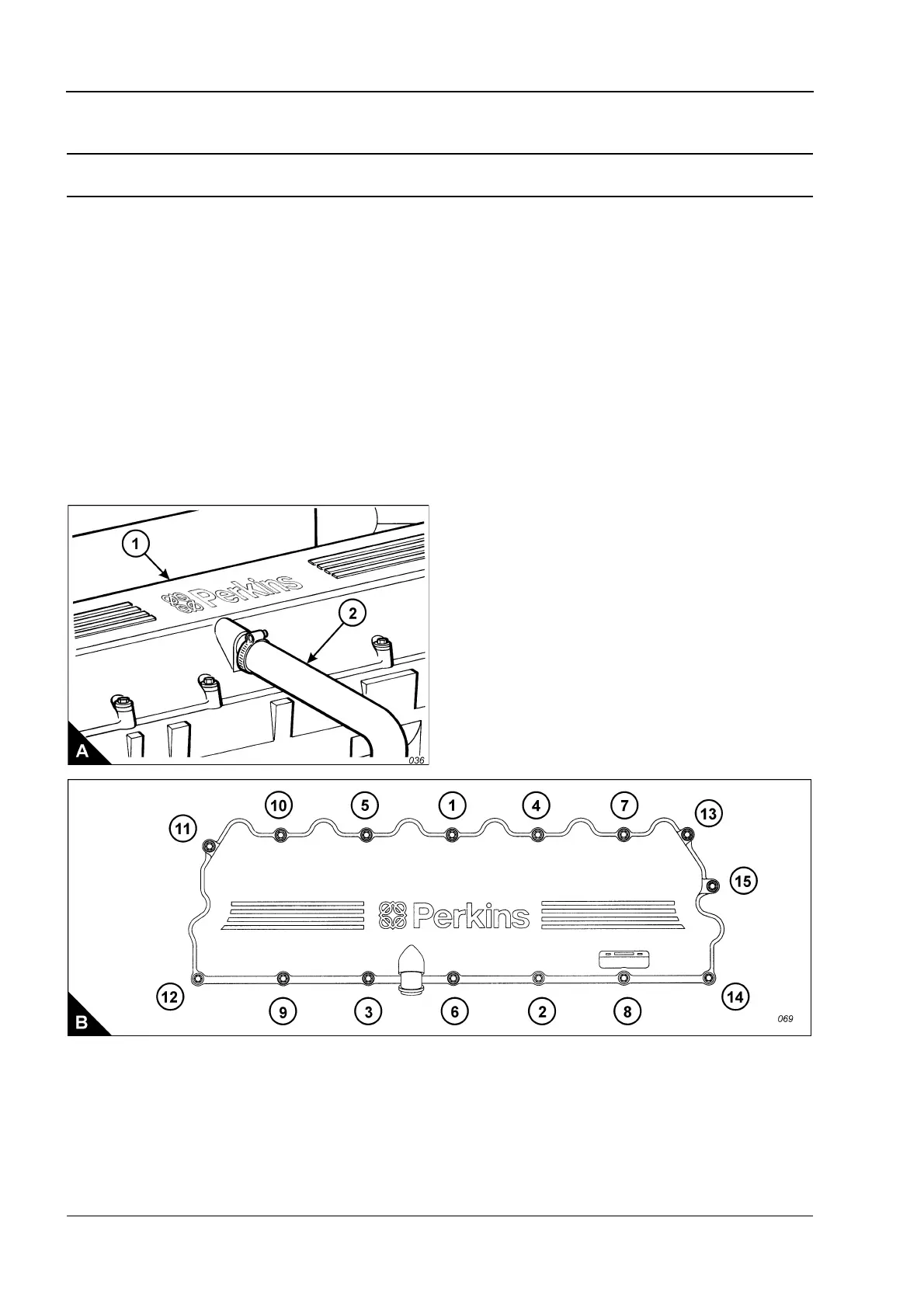

1 Disconnect the wiring harness at the socket on the rocker cover (A1).
2 Disconnect and remove the engine breather pipe (A2).
3 Loosen fully the bolts which retain the rocker cover, but do not remove the bolts from the assembly; allow
them to be retained by the seal.
4 Remove the rocker cover.
To fit
1 Inspect the seal of the rocker cover and renew if worn of damaged.
2 Fit the rocker cover, complete with seal and bolts. Tighten the bolts to a torque of 20 Nm (15 lbf ft); use the
sequence shown (B).
3 Fit the engine breather pipe (A2).
4 Connect the wiring harness. Ensure that the wiring harness is fully engaged with the connector.
