Oil pump
To remove and to fit Operation 10-4
To remove

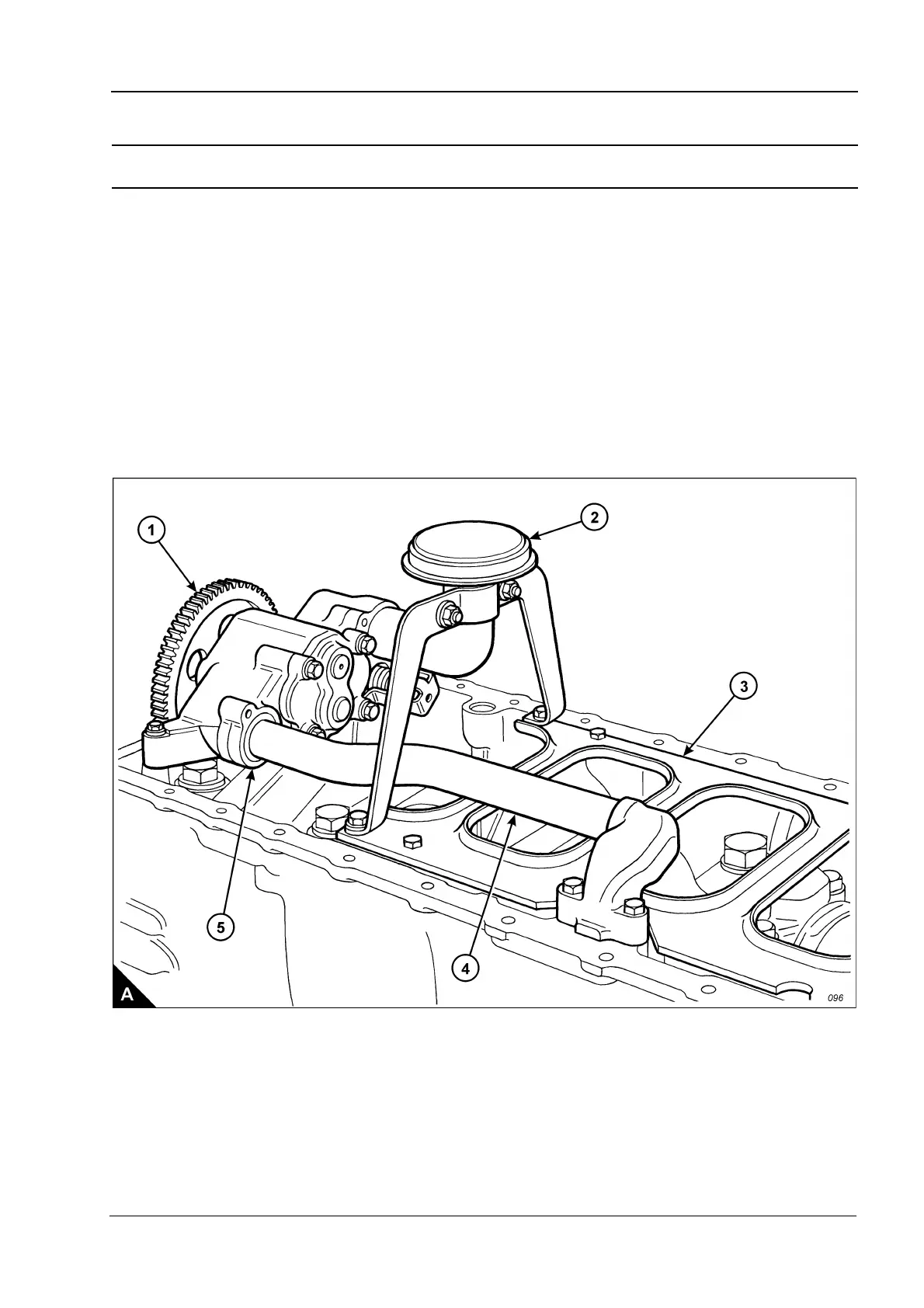

1 Remove the sump, Operation 10-3.
2 Remove the oil supply tube (A4) and the strainer and tube (A2).
3 Remove the bolts and remove the oil pump (A5).
Note: If the oil pump is to be dismantled, slacken the bolt which retains the drive gear (A1) before the pump is
removed from the engine.
To fit
1 Fit the oil pump to the crankcase.
2 Apply clean engine oil to the ‘O’ ring seals of the tubes.
3 Install oil supply tube (A4) and strainer and tube (A2).
4 Fit the sump, Operation 10-3.
