54 Workshop Manual, TSD3450E, Issue 1
2800
Injector sleeves
To remove and to fit Operation 3-14
Special requirements
To remove
1 Remove the rocker shaft assemblies, Operation 3-2.
2 Remove the electronic injector units, Operation 3-12.
3 Mark the bridge pieces and make a note of their position to assist during assembly, then remove the bridge
pieces.

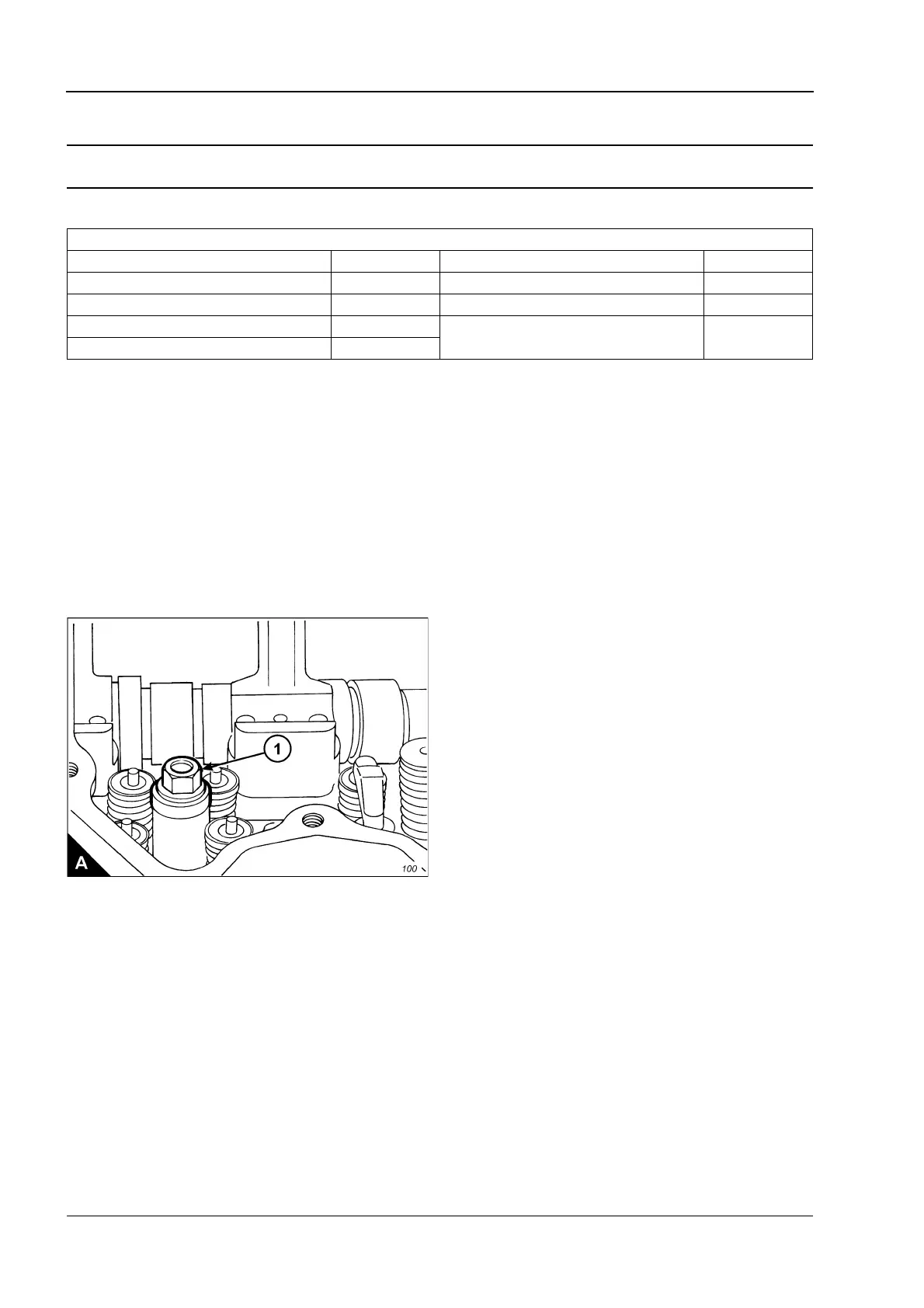

4 Fit the puller stud from the special tool, GE50021, into the injector sleeve as shown (A). Fit the bridge, thrust
bearing, washer and nut, from the special tool, over the stud as shown. Tighten the nut (A1) of the special tool
until the sleeve is drawn from the cylinder head. Remove the special tool from the sleeve.
5 Remove the ‘O’ ring seals from the injector sleeve. Check the condition of the injector sleeve and renew if
necessary.
6 Repeat steps 1 to 5 for the injector sleeves which remain.
Special tools
Description Part number Description Part number
Injector installer/removal GE50021 Brush GE50022
Vacuum pump GE50028 Brush GE50023
Tube GE50030
Brush GE50024
Bottle GE50029
