To fit

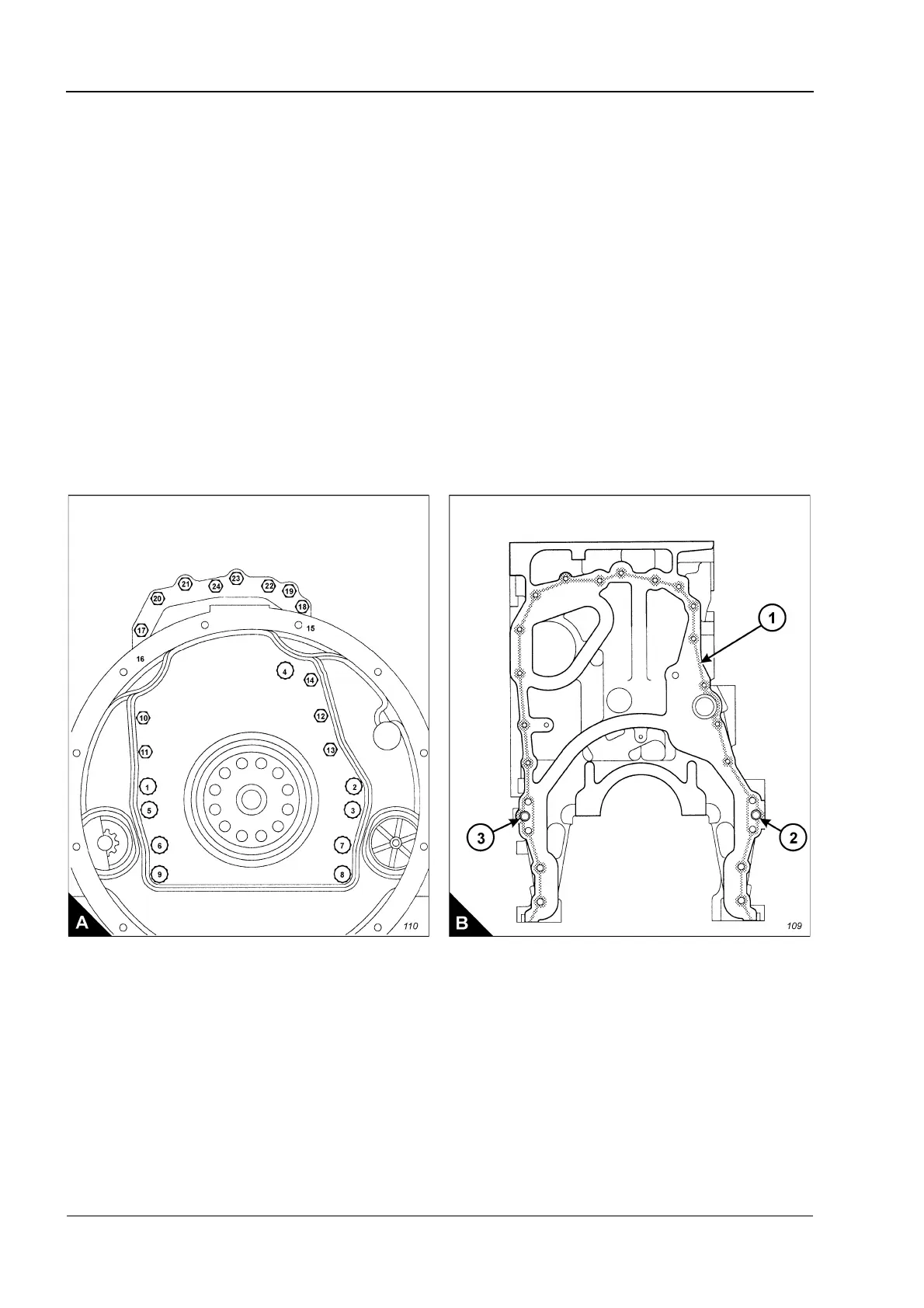

1 Clean thoroughly the contact surfaces of the crankcase and flywheel housing.
2 Fit the two dowels (B2 and B3) if they have been removed from the crankcase. They must protrude from the
crankcase by 19,1 +/- 0,5 mm (0.75 +/- 0.02 in).
3 Apply a bead of liquid gasket, CH10879, to the area shown (B1).
4 Attach a suitable hoist and fit the flywheel housing to the crankcase. Fit the bolts which retain the housing
but do not tighten at this stage.
5 Tighten the flywheel housing bolts as follows:
a. Tighten bolts A1 to A9, in numerical sequence, to a torque of 100 +/- 20 Nm (74 +/- 15 lbf ft).
b. Tighten bolts A10 to A24, in numerical sequence, to a torque of 40 +/- 10 Nm (30 +/- 7 lbf ft).
c. Tighten bolts A1 to A9, in numerical sequence, to a torque of 135 +/- 20 Nm (100 +/- 15 lbf ft).
d. Tighten bolts A10 to A24, in numerical sequence, to a torque of 55 +/- 10 Nm (40 +/- 7 lbf ft).
6 Fit the sump, Operation 10-3.
7 Fit the starter motor, Operation 14-1.
8 Fit a new crankshaft rear seal and wear sleeve, Operation 5-3.
9 Fit the flywheel, Operation 13-1.
