3
36 Workshop Manual, TSD3450E, Issue 1
2800

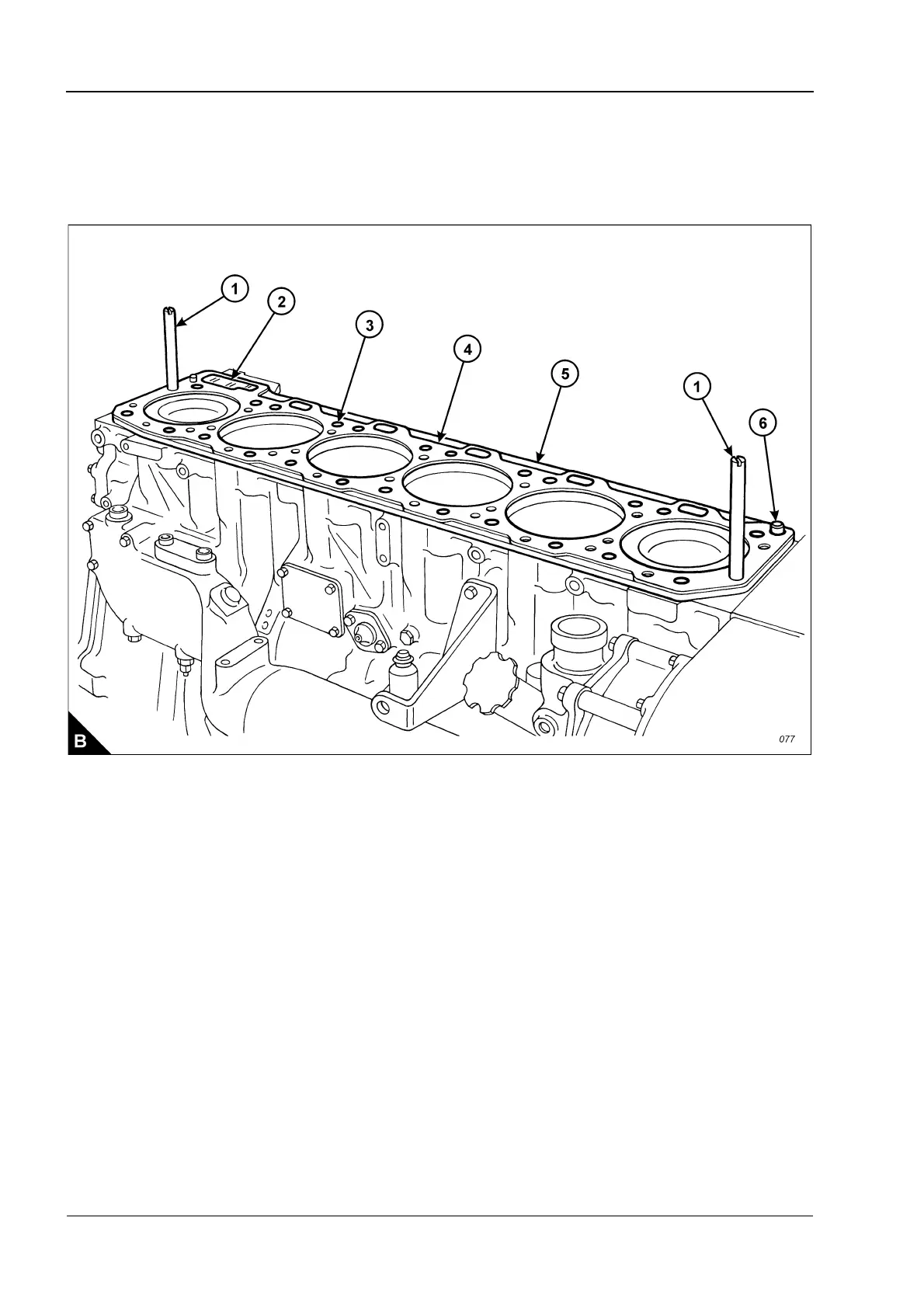

12 Remove the cylinder head gasket (B4).
13 Remove the ‘O’ ring seal from the oil transfer tube (B6) and remove the 24 coolant seals (B3).
14 Remove the seal (B2).
15 Remove the spacer plate (B5) and discard the spacer plate gasket.
16 Remove the second ‘O’ ring seal from the oil transfer tube (B6).
