To fit
1 Apply clean engine oil to the relevant valve stems.
2 Fit the washer, valve spring and rotocoil to each valve.
3 Use the valve spring compressor, GE50026, to compress the valve springs.
Note: The collets are tapered. When fitted, the large (thick) diameter must be uppermost.
4 Fit two collets to each valve.
Caution: The collets can be dislodged from the valve stem during the removal of the valve spring compressor.
Ensure that the collets are seated correctly during this procedure.

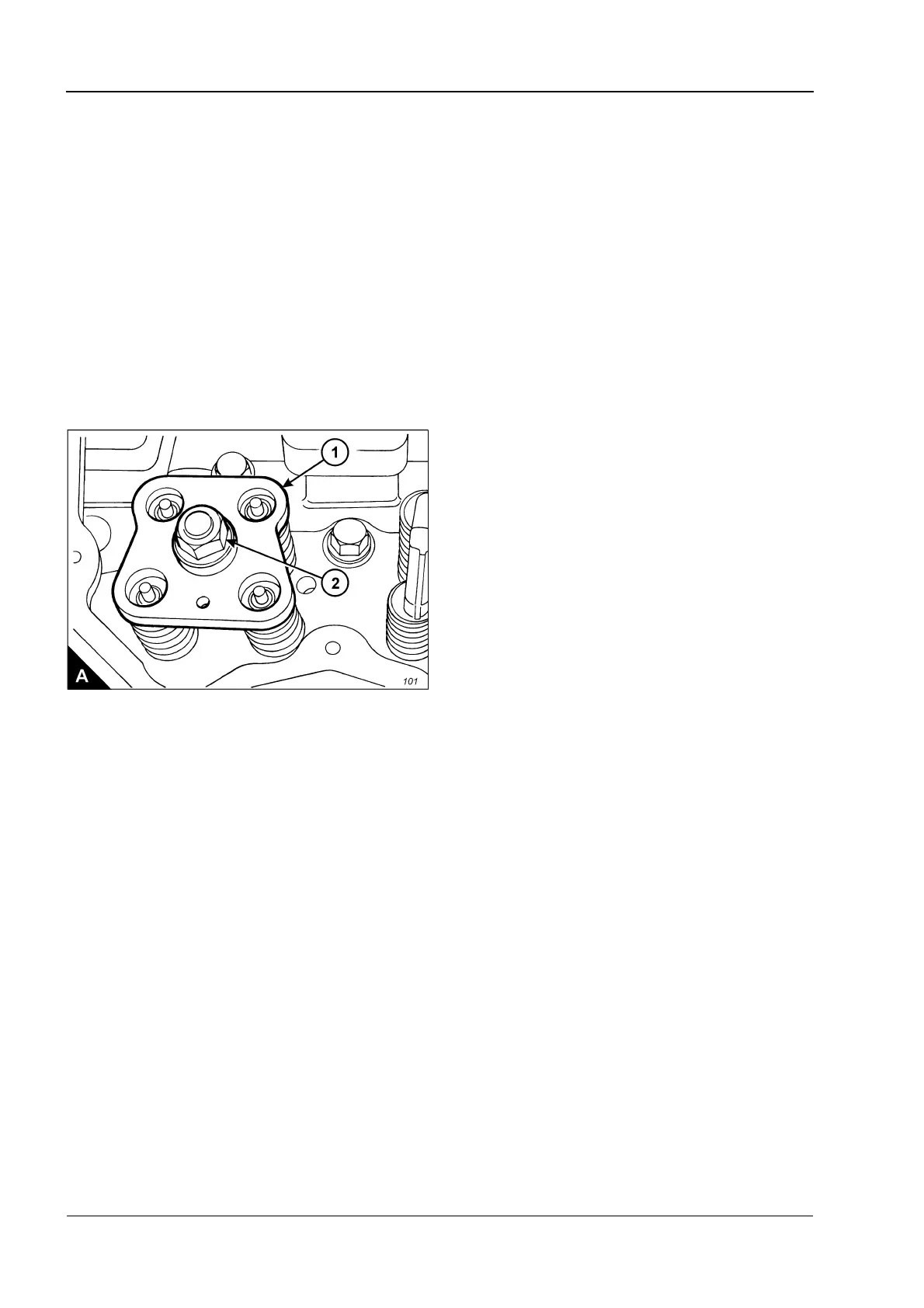

5 Loosen slowly and then remove the nut (A2) and plate (A1) of the valve spring compressor. Remove the
other parts of the valve spring compressor tool and ensure that the collets are fitted correctly to the valve
stems.
6 Tap lightly each valve with a soft hammer to ensure that the collets are seated correctly.
7 Fit the electronic unit injectors, Operation 3-12.
8 Fit the rocker lever and rocker shaft assemblies, Operation 3-2.
