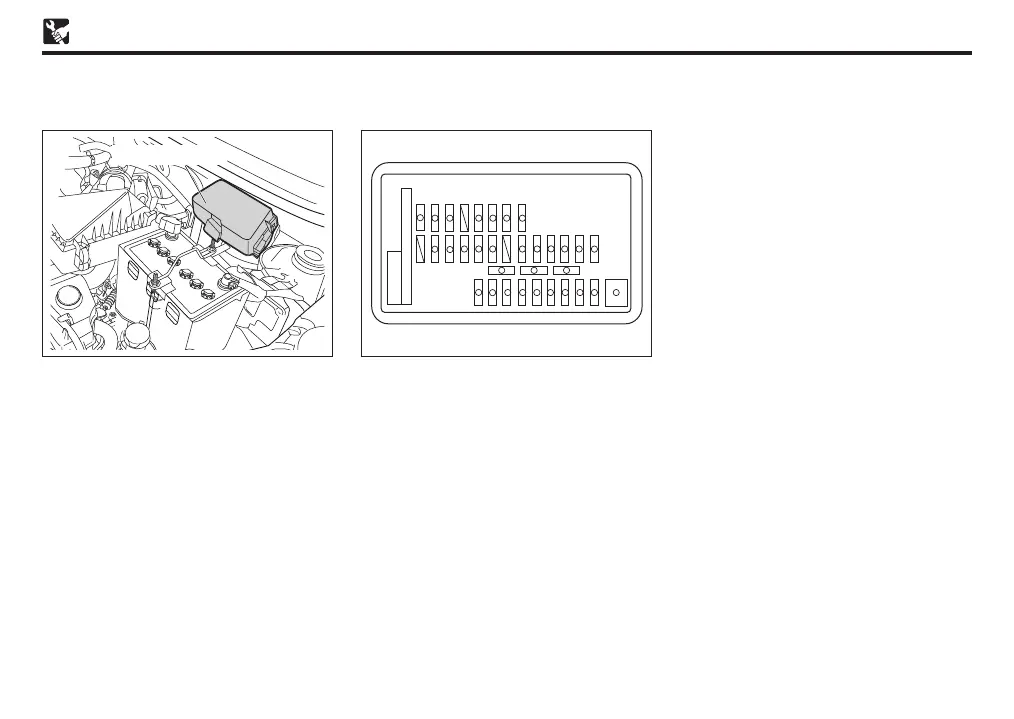

Blok fius utama
1
NOTICE
USE THE DESIGNATED FUSES ONLY
2
3 4 5 6 7
8
20
19
18
17
16
15
14
12 13
21 22 23 24 25 26 27 28
3129 30
1110
9
Geganti & kotak fius
Apabila mengganti fius, gunakan fius
yang telah dispesifikasikan seperti yang
ditunjukkan pada label penutup kotak fius.
1 (DEF2) - Defogger 2...5A
2 (FR FOG LH) - Front fog light...7.5A
3 (FR FOG RH) - Front fog light...7.5A
4 WASHER - Windshield washer...15A
5 (D/L) - Door lock...15A
6 H-LP LO RH - Head lamp low...15A
7 (ECU-B)...10A
8 (DOOR-DL)...15A
9 (POWER B)...20A
! (A/C)...7.5A
" ECU IG1 - ECU Ignition 1...7.5A
# (IG1) - Ignition 1...5A
$ AM 1...5A
% (SOCKET)...15A
& BACK UP2...5A
' FR WIP - Front Wiper...25A
( H-LP LO LH - Head lamp low...15A
) (STR LOCK) - Steering lock...20A
* AM 2...7.5A
+ ACC - Accessories...5A
, H-LP HI RH - Head lamp high...10A
- DOME - Dome Lamp...5A
. H-LP HI LH - Head lamp high...10A
/ STOP - Stop lamp...10A
Å TAIL - Tail Lamp...10A
Ç HORN...10A
É (DEF) - Defogger...15A
Ñ (POWER) - Power Window...30A
Ö Spare...15A
Ü Spare...10A
á Spare...5A
* ( ) Sekiranya dilengkapi
