3–23
Top strap
If your child restraint system has a top strap,
it should be anchored.
Follow the procedure below for a child restraint
system that requires the use of a top strap.

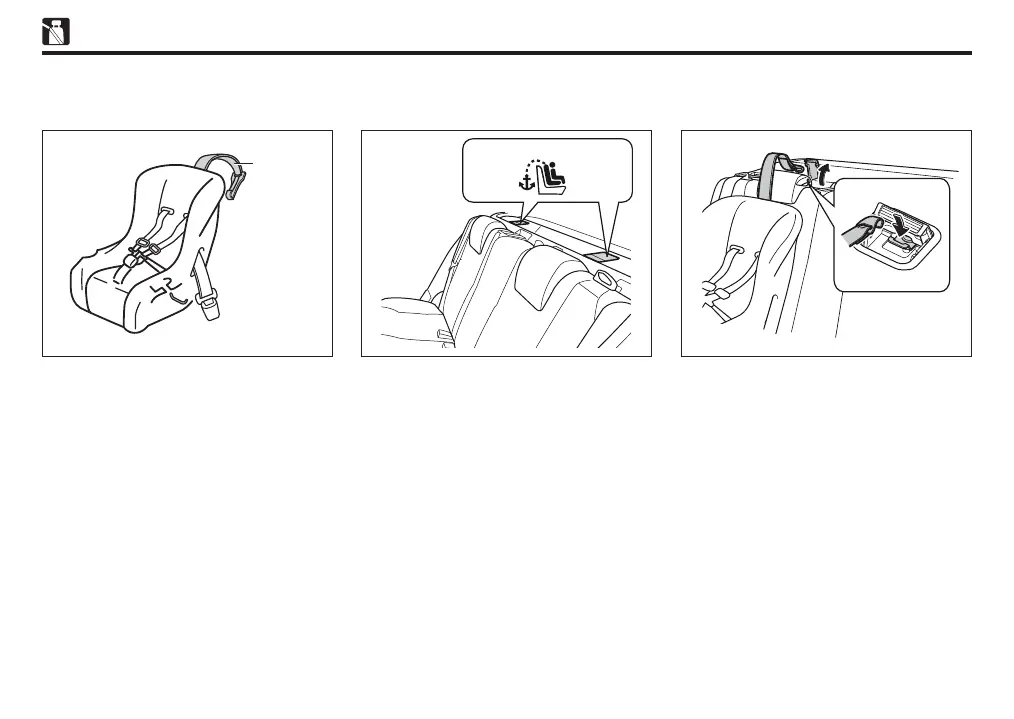

Using a top strap Using top-tether anchors
Top-tether anchors location
Use the top-tether anchors as shown in the
figure to attach the top strap.
Top-tether anchors are installed for each rear
seating position.
The symbol indicates the locations of user
ready top-tether anchors.
1. Securely fasten the child restraint system
with the seat belt.
2. Route the top strap over the seatback.
3. Open the anchor bracket cover, latch the
hook onto the anchor bracket and tighten
the top strap.
Make sure the top strap is securely
latched.
4. For rear seat that equipped with headrest,
adjust the seat headrest to the most
upward position and route the top strap
through the legs of the headrest and over
the seatback.
For instructions to install the child restraint
system using seatbelt, see "Child restraint
system".
