9. Repeat step 6 to 8 a few times.
10. Install the radiator drain plug and new
gasket, tighten it securely.
11. Slowly pour proper amount of coolant
(ethylene glycol based anti-freeze
solution) into the radiator and reserve
tank. Pour proper amount of clean soft
water into the radiator until it is full.
Pour the clean soft water into the reserve
tank to the “F (full)” line.
12. Close the radiator and reserve tank caps
securely.
13. Run the engine for several minutes and
stop it. Allow the engine to cool.
14. Carefully remove the radiator cap and
check the coolant level. If necessary, add
clean soft water to the radiator.
15. Install the radiator cap tightly.
16. Warm up the engine to normal operating
temperature. Check if any coolant is
leaking from the drain plug. Any leak
indicates improper installation of the
radiator drain plug.
17. After driving for a short while, check the
coolant level. If the coolant has decreased,
add coolant with a proper mixing ratio to
the “F (full)” line in the reserve tank.
Alternator pulley
Crankshaft pulley
Air conditioner
pulley
W
ater pump
pulley

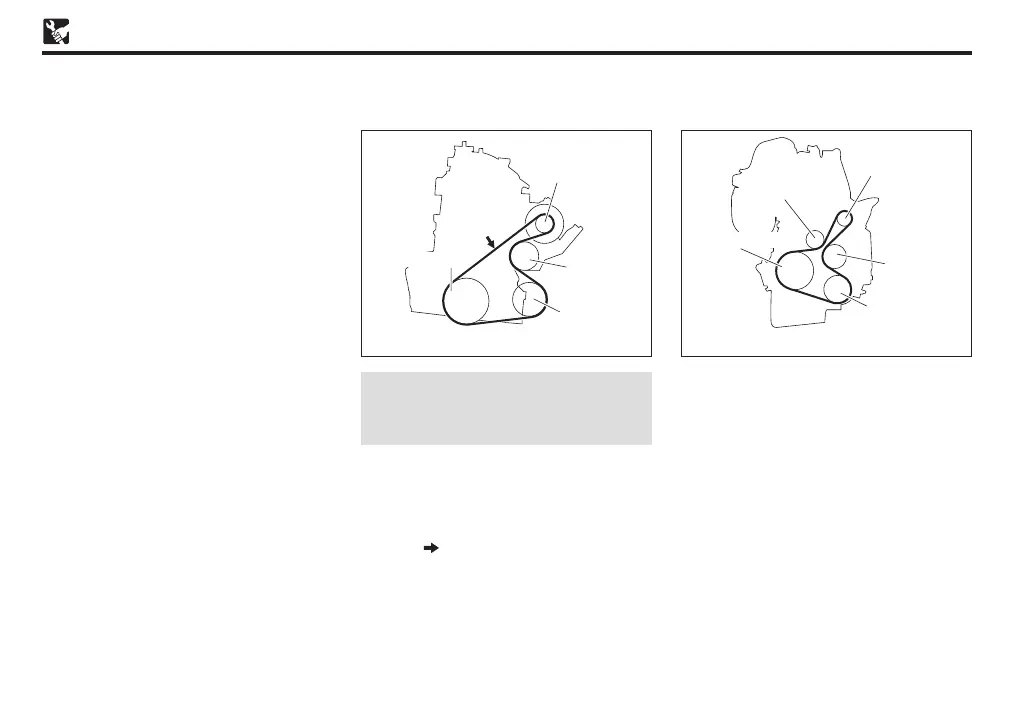

1KR-VE Engine
Drive belt check
w WARNING
Be careful not to burn yourself with
hot engine components and radiator.
Turn the engine off and inspect the drive belt
for cracks, excessive wear or oiliness.
Have any damaged belt replaced by an
authorised Perodua Service Centre.
Push the and measure the deflection.
1NR-VE Engine
Air conditioner
pulley
Water pump
pulley
Alternator pulley
Tensioner pulley
Crankshaft pulley
