14–11

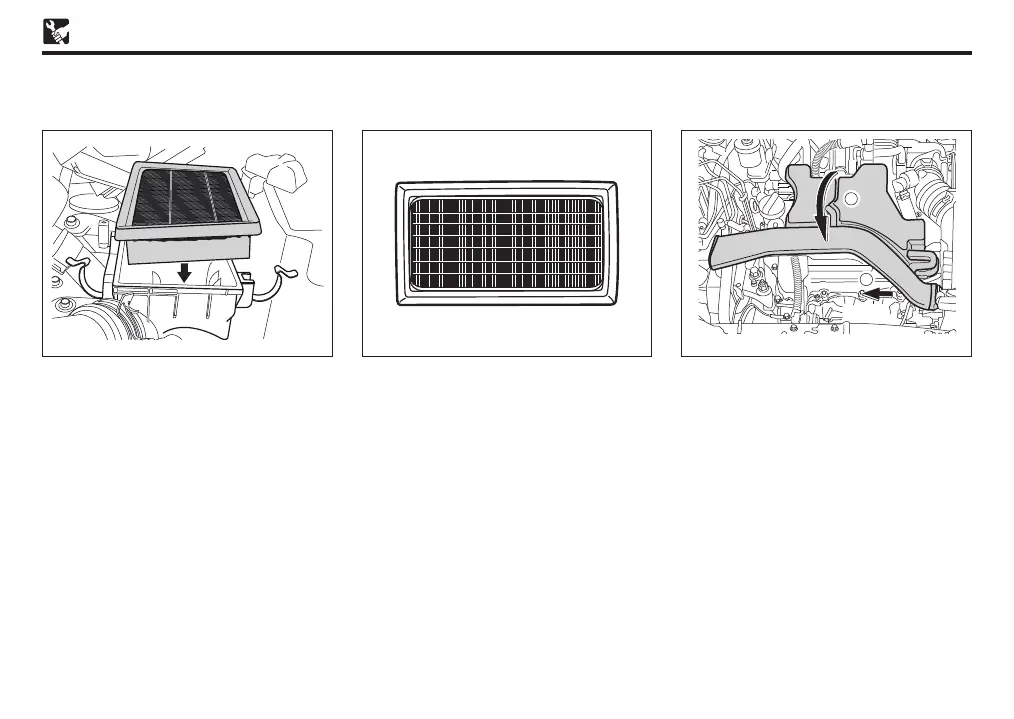

To store
1. Fit the air filter to the rubber cover.
2. Install the upper case.
3. Latch the clips.
Spark plug check and replacement
(Type 1)
1
2
1KR-VE Engine
1. Lift up the air cleaner hose in direction 1
shown in the illustration.
2. Remove the air cleaner hose in direction
2 from the air cleaner case.
