14–26
17 - 32 mm

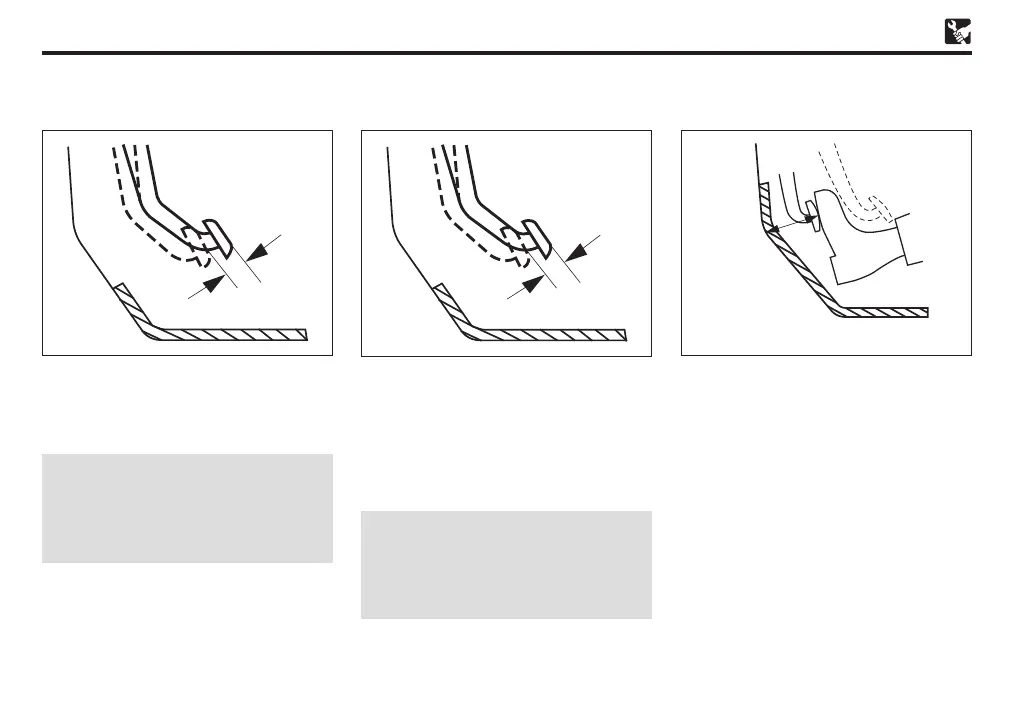

Clutch pedal free play check
Depress the clutch pedal by hand lightly until
you feel resistance, and measure the free play.
Check to see that the free play is within the
specification.
w WARNING
If the free play is not within the
specification, have the system
checked immediately by an authorised
Perodua Service Centre.
0.5 - 2.0 mm
Turn the engine off and depress the brake
pedal more than five times to release vacuum
in the brake booster.
Measure the play of the pedal by pulling the
brake pedal toward your side.
Check to see that the free play is within the
specification.
w WARNING
If the free play is not within the
specification, have the system
checked immediately by an authorised
Perodua Service Centre.
Brake pedal
Brake pedal free play check
67 mm or more
Reserve
travel
Brake pedal reserve travel check
1. Park the vehicle on a level surface.
2. Shift the manual transmission lever in
neutral, or the automatic transmission
lever in P.
3. Release the parking brake.
4. With the engine running, depress the
brake pedal several times.
5. Depress the brake pedal with a force of
294 N (30 kgf), and measure the distance
between the top of the brake pedal and
the bulkhead.
6. Check to see that the reserve travel is
within the specification.
7. Check also to see that the reserve travel
remains the same.
