14–31

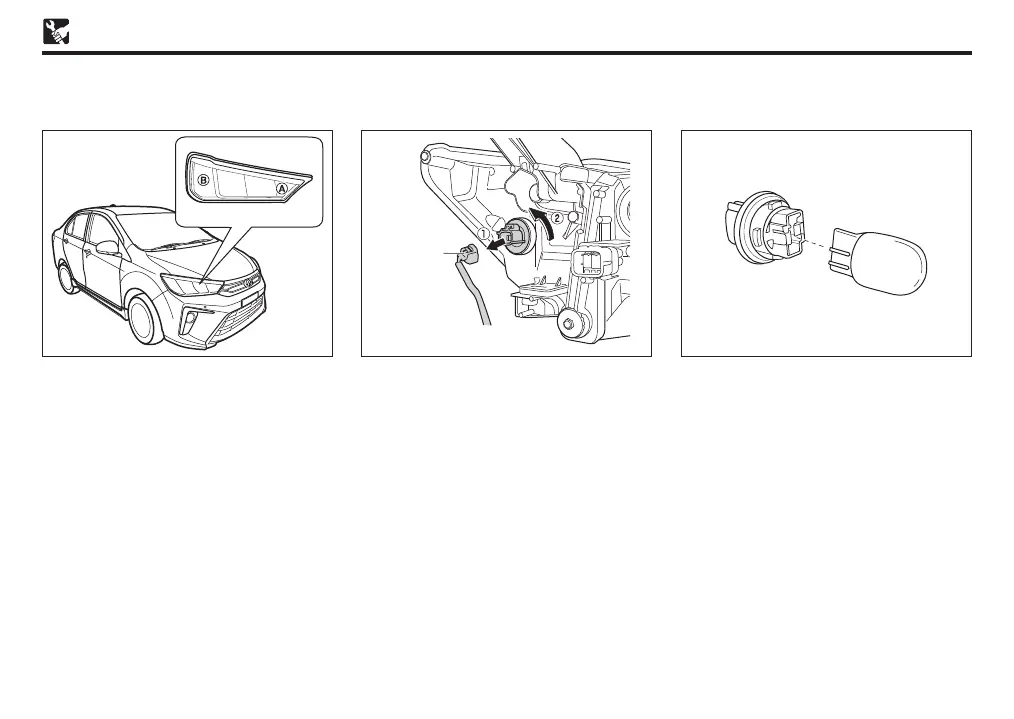

Clearance lights / front turn signal lights
The clearence lights A are using LED type.
If any of the LED burns out, contact an
authorised Perodua Service Centre.
The front turn signal light bulb B can be
removed from the engine compartment side.
To remove bulb
1. Disconnect the wire connector by pushing
and pulling it.
2. Remove the bulb socket by turning it
counterclockwise about 45 degrees.
Connector
lock
Front turn signal light
3. Remove the bulb from the socket by pulling
it.
To install bulb
Reverse the bulb removal procedure to
reinstall.
