Connector
socket
4. Pull out the connector socket to remove
it.

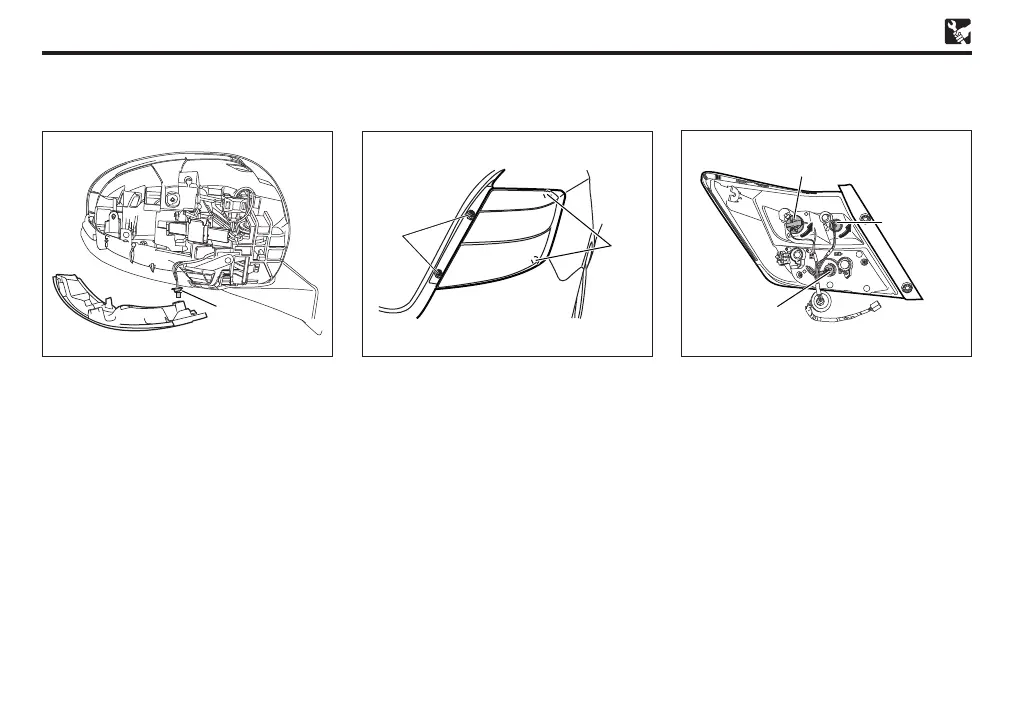

(Rear turn signal lights / stop & tail lights
/ backup lights)
1. Open the trunk
2. Remove the 2 bolts.
3. Detach the lamp assembly from 2 side
clip.
CAUTION
Be careful not to pinch the wire connector
when you reinstall
Bolt
Clip
Rear combination lights
4. Remove the rear turn signal light and
backup light bulb socket by turning it
counterclockwise about 45 degrees.
Rear turn
signal light
Stop & tail
light (LED)
Backup light
