14–35

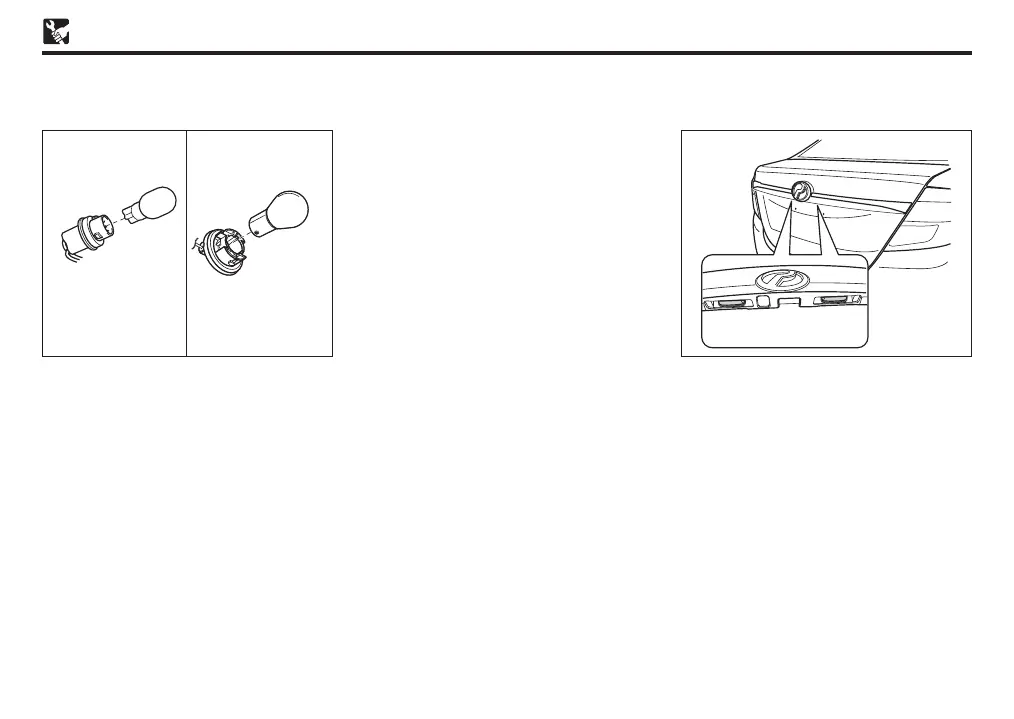

5. Remove the bulb from the socket by pulling
it.
Backup lights Rear turn signal lights
6. Change the bulb and reverse the removal
procedure to re-install.
7. If the tail light and stop light (LED)
malfunction, replace the whole
combination lamp assembly.
NOTE
When installing the light assembly, be sure
to align the projection of the light assembly
with the body hole.
To install bulb
Reverse the bulb removal procedure to
reinstall.
To remove bulb
1. Licence plate light bulb can be replaced
from trunk compartment side.
Licence plate lights
