Operating Manual DTT 6801 Multicontroller (MC) 086100037 © Pfannenberg GmbH Page 9 / 49
GB
 Three different PAD channel systems are provided for the flat channel system:
 DTT cooling units 6301/6401 size 2 (1500 W / 4000 W): PAD two-channel system* (5) with PAD two-channel
frame (6).
 Three different PAD channel systems are provided for the flat channel system:
 DTT cooling units 6601/6801 size 3 (1500 W / 4000 W): PAD two-channel system* (7) with PAD two-channel
frame (8).
The DTT cooling units require the following PAD frames and the following PAD air channel system:
No.
Designation
No.
Designation
18315000005
DTT 6101/6201 PAD frame
18315000000
DTT 6301/6401 PAD frame
18315000001
DTT 6601/6801 PAD frame
18315000001
PAD air channel system*
* The PAD two-channel system (5)/(7) necessitates use of two PAD air channel systems.
6
5

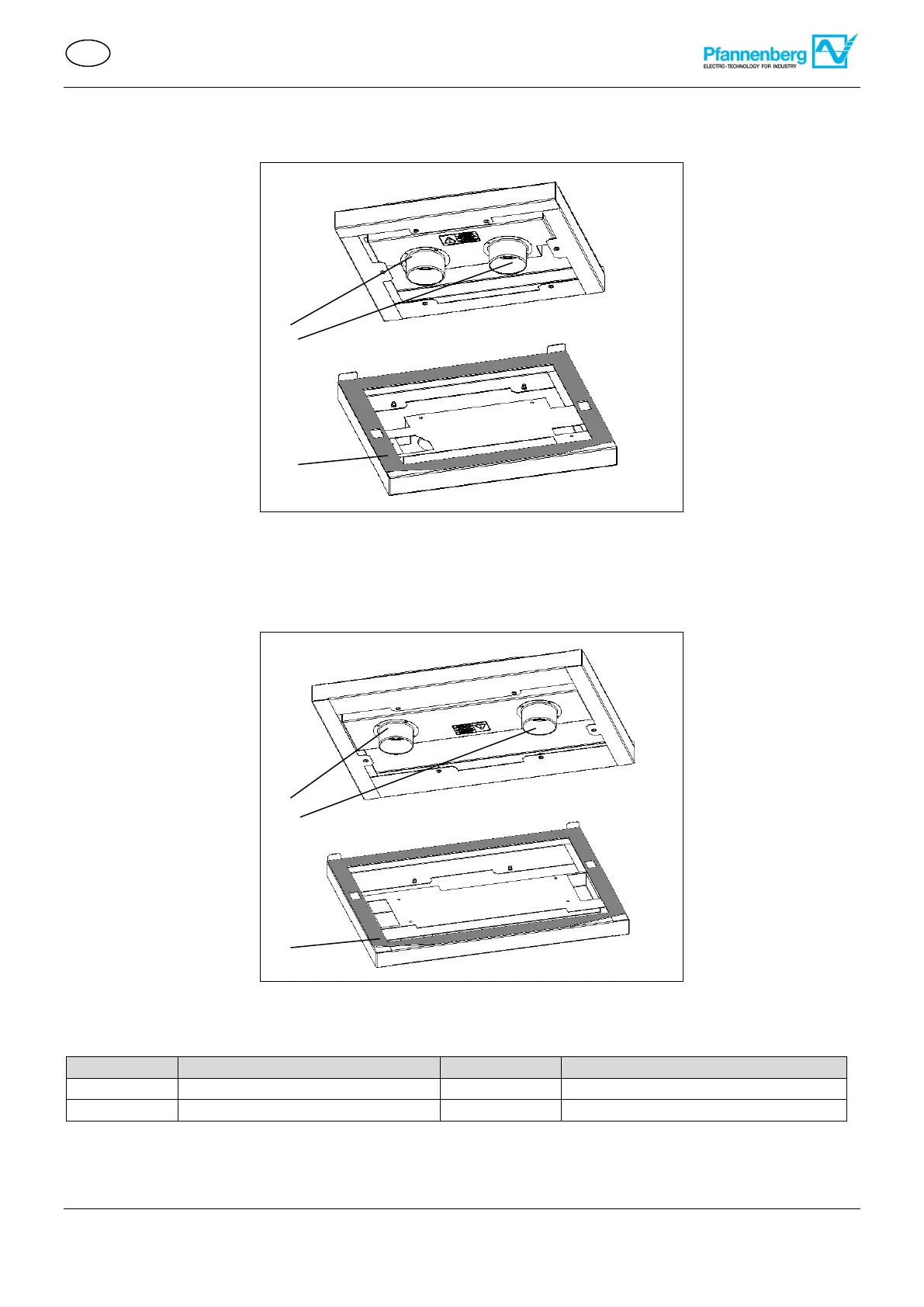

Figure 6 - PAD two-channel system, DTT cooling units
6301/6401
8
7
Figure7 - PAD two-channel system*, DTT cooling units 6601/6801
