Operating Manual DTT 6801 Multicontroller (MC) 086100037 © Pfannenberg GmbH Page 25 / 49
GB

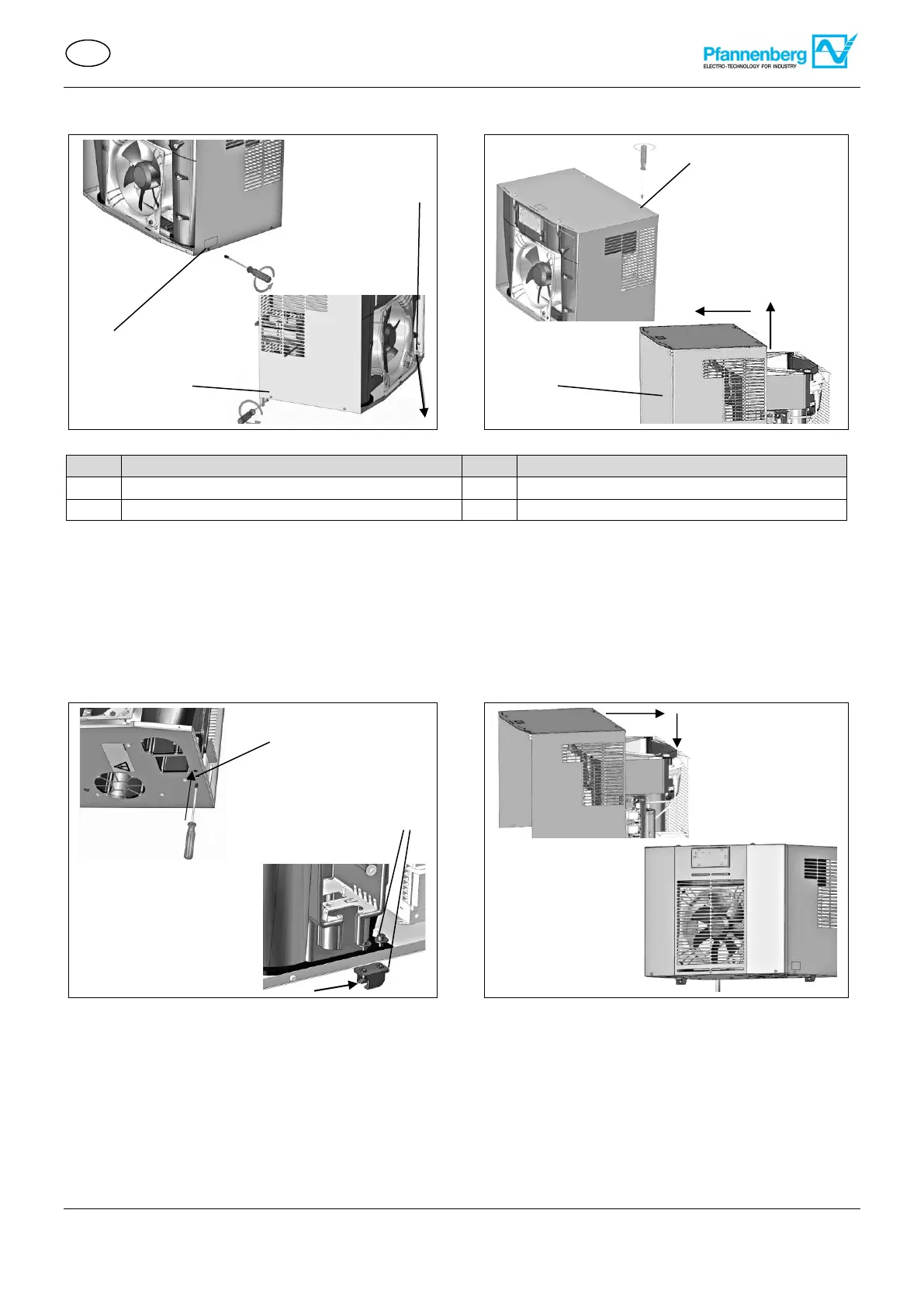

Assembly with quick-release frame
Unit preparation - unit cover removal
Pos
Designation
Pos
Designation
1
Right cover screws (2x)
2
Left cover screws (2x)
3
Ground cable
4
Top cover screws (4x)
Procedure
 Unscrew the two screws on the right side of the unit (1) and the two screws on the left side of the unit (2).
 Disconnect the ground cable (3); see the figure Loosening the unit cover.
 Remove the four screws on the top side of the unit (4).
 Carefully pull the unit cover (5) upwards; see the figure Unit cover removal.
 The cover has been removed from the cooling unit.
Unit preparation – Bracket assembly
Procedure
 Make a hole in the insulation of the bracket opening (6) with a screwdriver. Make 2x on the right and 2x on the
left.
 Mount the two brackets (7) with the four screws (7) and the four washers (accessory kit). The openings of the
brackets face forwards; see the figure Bracket assembly.
 Install the cover and front panel in the reverse order.
 Tighten the screws, connect the ground cables; see the figure – Cover installation.
 Unit preparation is completed. The cooling unit is ready for installation with the quick-release frame.
1
3
4
5
2
Figure 23 – Loosening the unit cover
6
7
Figure 25 – Bracket assembly
Figure 26 – Cover installation
Figure 24 - Unit cover removal
