Section 4.3.2 Deleting Folders and Files:

After logging in at the user level you have the option to delete individual files or whole

folders from the internal storage of PT-Node.

4.3.2.1 Deleting Folders

Note that you can only delete empty folders (white icon). To delete a folder containing any

files (yellow icon) you first need to delete all files in this folder.

Use the checkbox on the left of the file name to mark the reports to be deleted and confirm

with the “Delete” button:

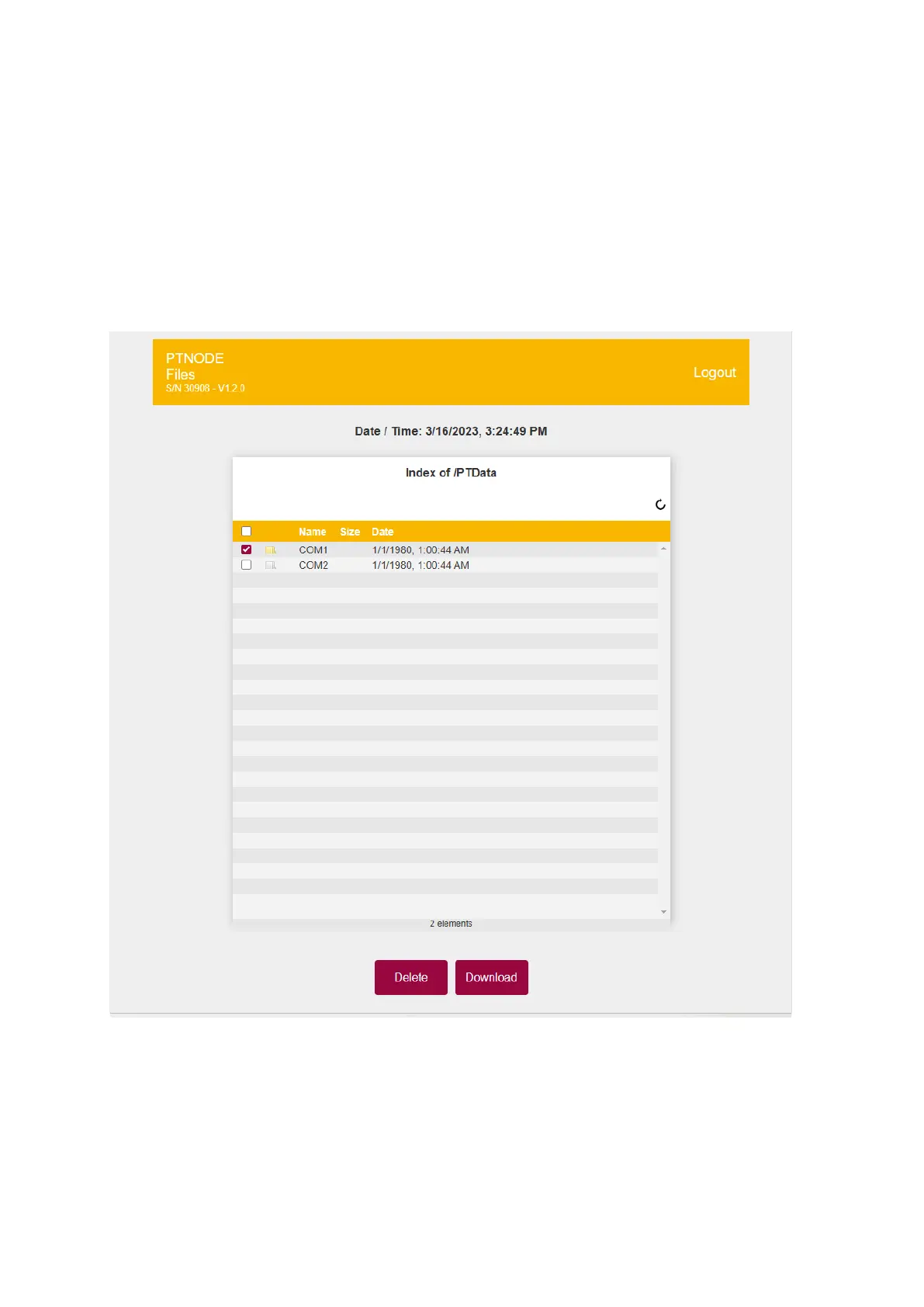

Figure 20: Deleting folders

You can also use the topmost checkbox to mark all folders.
