5.2.2.1 Activating the Ticket Printer Printout
Set your instrument to print in the ticket printer format:
5. Turn on the instrument, the display shows all “0”
6. Press [CAL]+[6]+[2] to display the printer selection menu
7. Use [.] (point) to toggle between the settings until you see this setting:
Number
Hardness
P r
P r E P
8. Press [*] (star) to confirm the selection
5.2.2.2 Connecting the Instrument to PT-Node
Connect the communication cable (part no. 34-00311) to the port labeled “RS 232” on the
backside of the instrument:

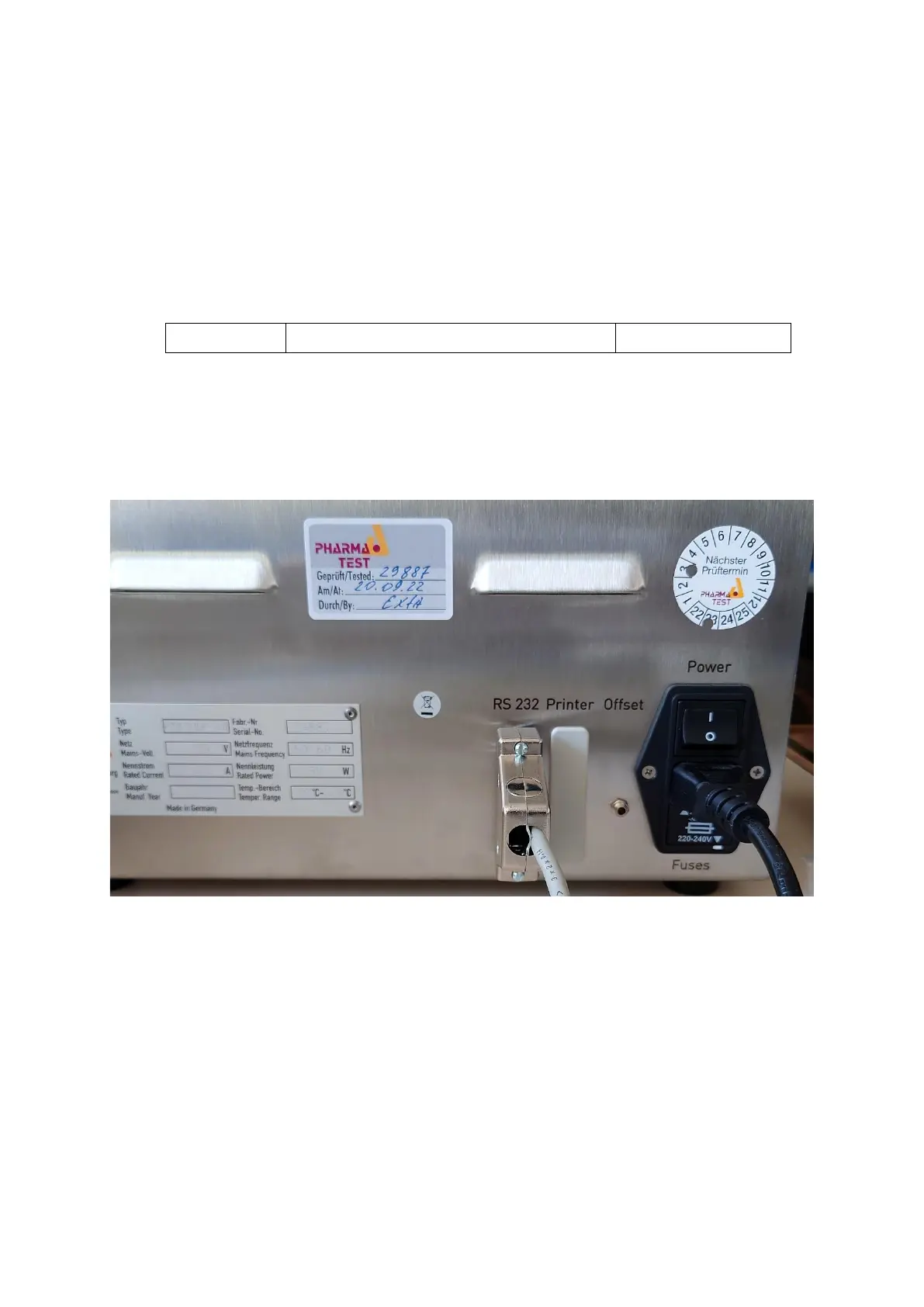

Figure 47: Communication cable connection to PTB 311E and PTB 511E
Connect the other side of the cable to one of the ports of PT-Node. Note the channel number
the port corresponds to.
