5.3.1.3 Connecting the Instrument to PT-Node
Connect the communication cable (part no. 34-00311) to the port labeled “RS 232” on the
backside of the instrument:

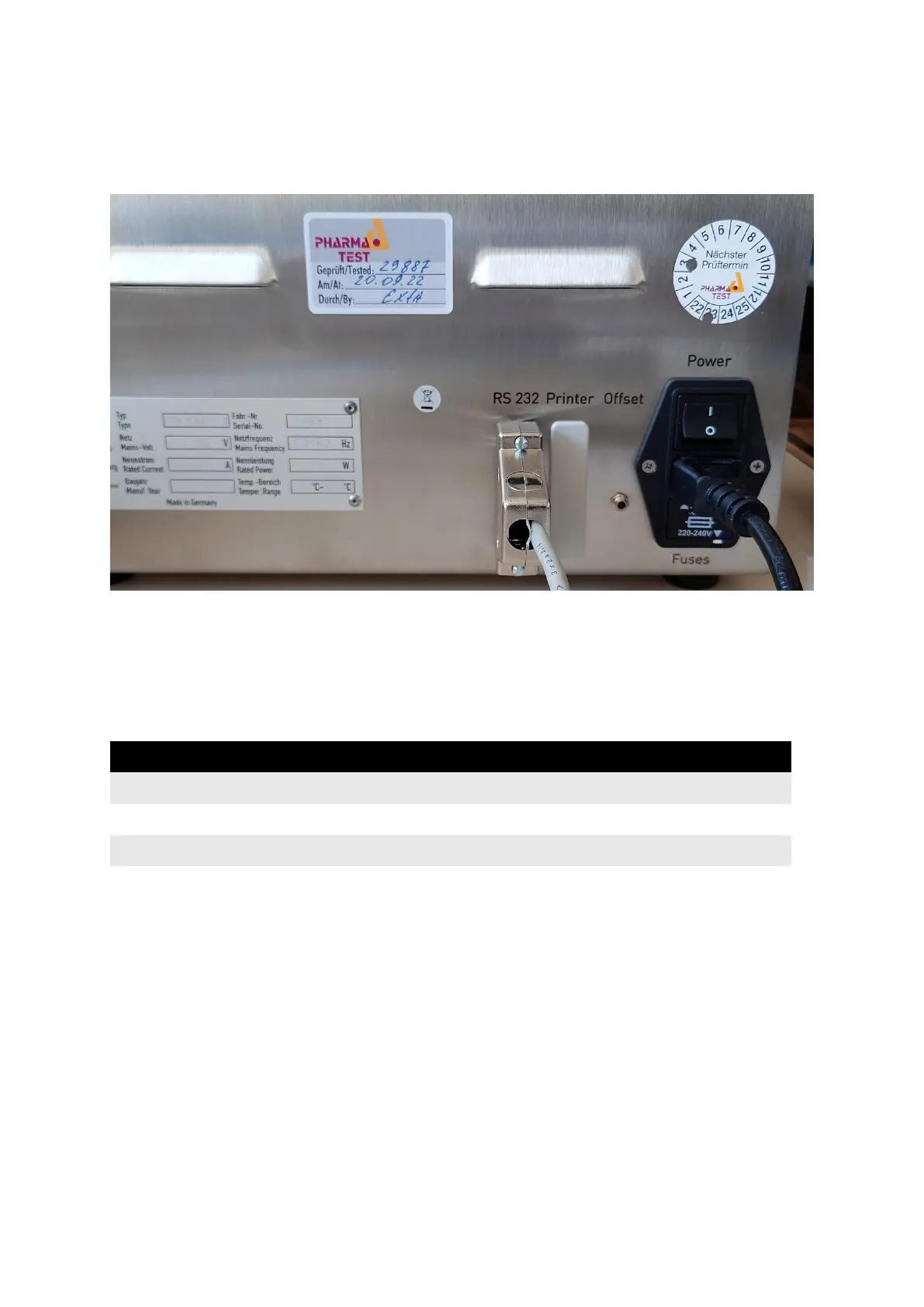

Figure 51: Communication cable connection to PTB 311E and PTB 511E
Connect the other side of the cable to one of the ports of PT-Node. Note the channel number
the port corresponds to.
5.3.1.4 Set the Device Settings on PT-Node
Login to PT-Node as administrator and enter the device menu. Enter the following settings:
Parameter
Setting
Device family
PTB x11E TP
Listener
Report
File timeout
OFF
Data folder
Enter the desired name for the folder on
the internal storage of PT-Node to save the
results
Table 14: PT-Node device settings for PTB 311E and PTB 511E and ticket printer
Press submit to store the settings.
You can now start measuring with the PTB 311E instrument. The serial data communication
is live. This means once the instrument sends print-out data via the serial interface it is
automatically captured by PT-Node. PT-Node recognizes the start of a new test report from
its header and creates a new file on its internal storage.
