Pharma Test PT-Node - Ptz 100, Ptz 300; Section 5.5.1 Capturing Test Reports; Figure 56: Communication Cable Connection to PTZ X00

Pharma Test Apparatebau AG
Operating Manual
B-24-00100_PT-NODE_v1.0e.docx Page 52 of 64
Section 5.5 PTZ 100, PTZ 300
Parameter
Specification
Instrument model name
PTZ 100, PTZ 300
Minimum firmware version
Connection
Serial 8pin D-Sub (female) plug labelled
“Printer” on the backside of the
instrument, cable part no. 34-01205
Output parameters
9600 bit/s, 8 data bits, no parity, 1 stop bit,
no handshake
Printout captured
Result report, calibration reports
Section 5.5.1 Capturing Test Reports
Connect the communication cable (part no. 34-01205) to the port labeled “Printer” on the
backside of the instrument:

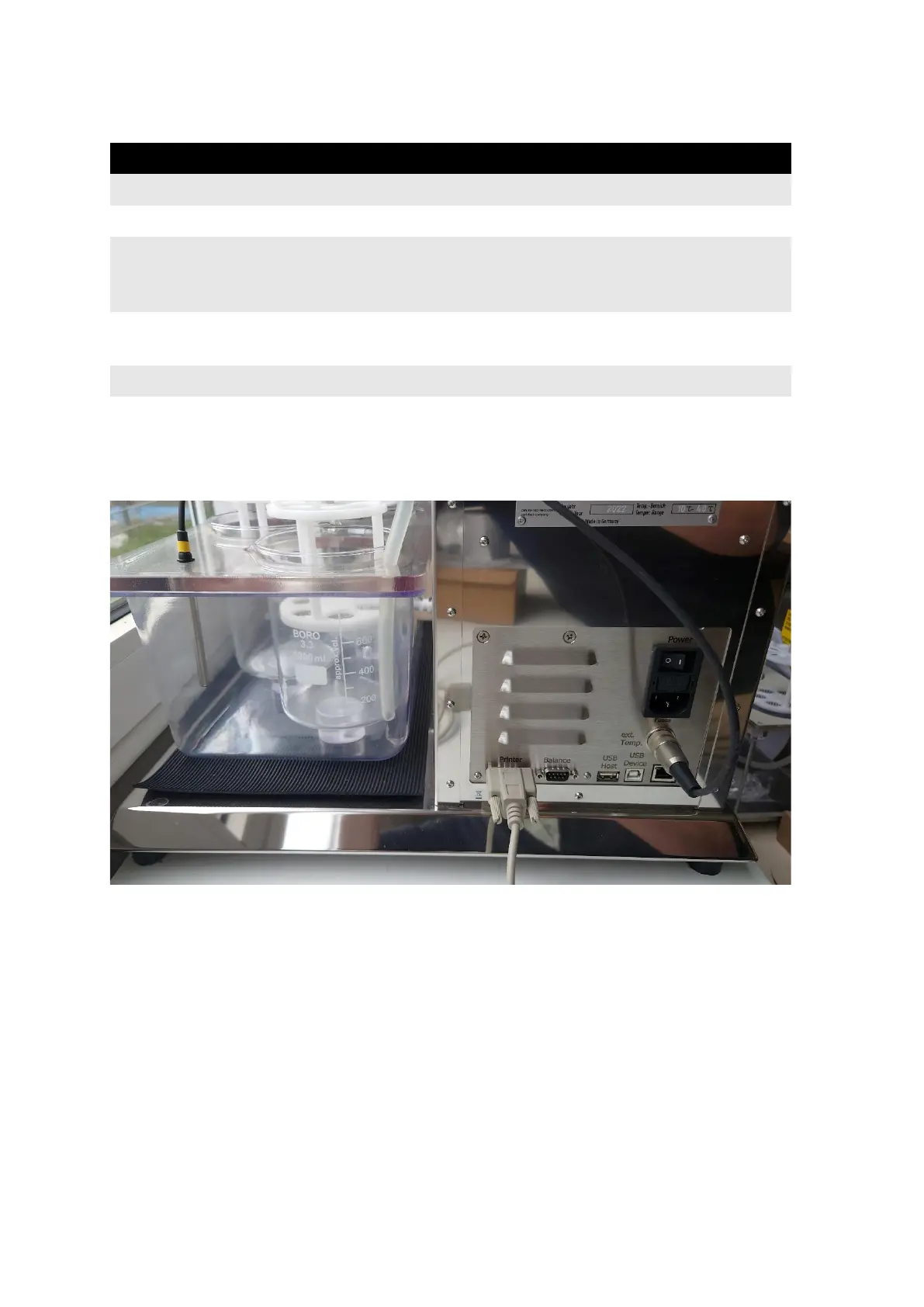

Figure 56: Communication cable connection to PTZ x00
Connect the other side of the cable to one of the ports of PT-Node. Note the channel number
the port corresponds to.
