In case you try to delete a folder that contains any files, you will receive below error

message:

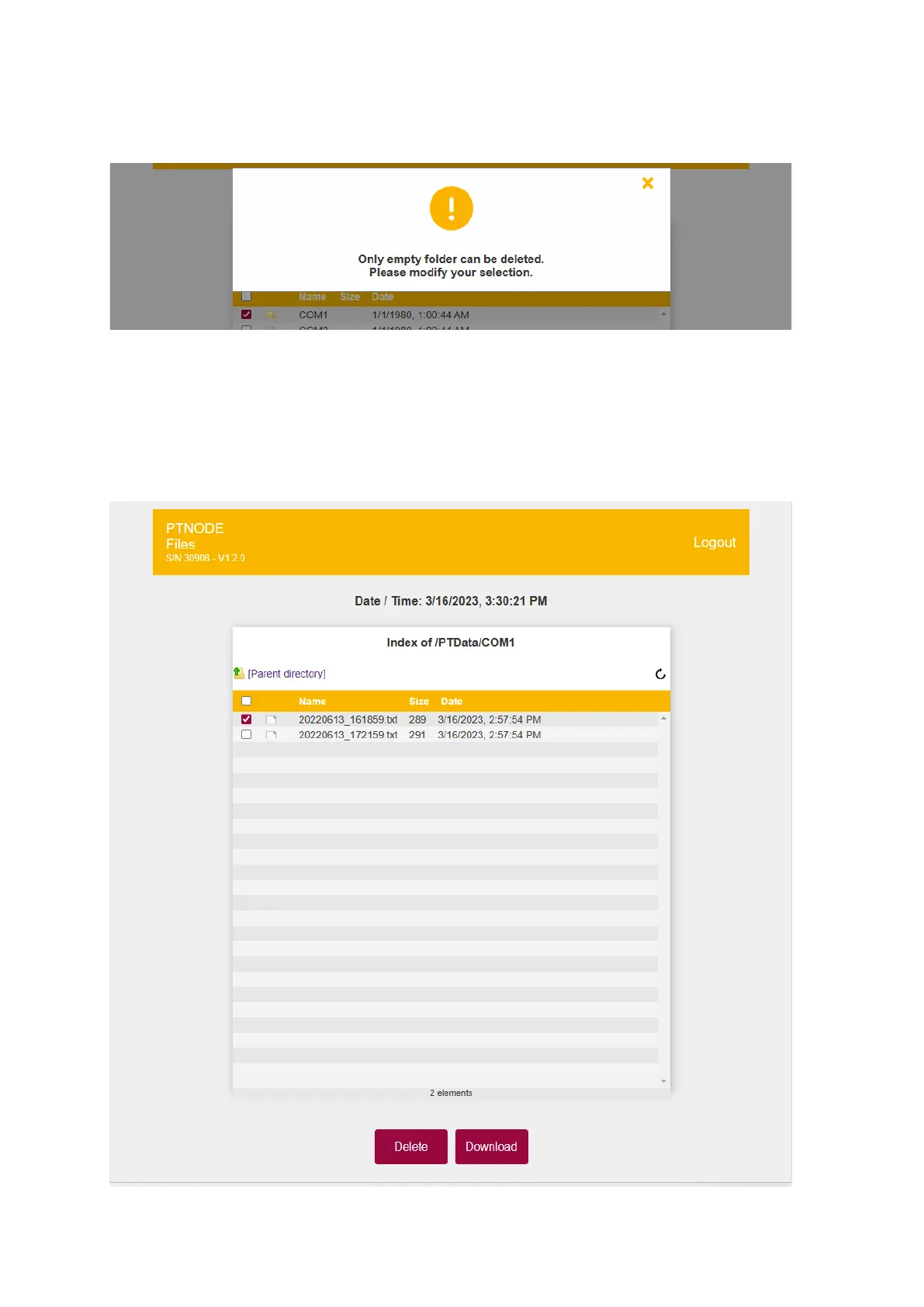

Figure 21: Error message: trying to delete a folder containing files

You first need to delete any files contained in this folder to be able to delete it. Otherwise,

the folder will be deleted.

4.3.2.2 Deleting Files

Use the checkbox on the left of the file name to mark the reports to be downloaded and

confirm with the “Delete” button:

Figure 22: Deleting files
