5.2.2.3 Set the Device Settings on PT-Node
Login to PT-Node as administrator and enter the device menu. Enter the following settings:
Parameter
Setting
Device family
PTB x11E TP
Listener
Report
File timeout
OFF
Data folder
Enter the desired name for the folder on
the internal storage of PT-Node to save the
results
Table 11: PT-Node device settings for PTB 311E and PTB 511E and ticket printer
Press submit to store the settings.
You can now start measuring with the PTB 311E or PTB 511E instrument. The serial data
communication is live. This means once the instrument sends print-out data via the serial
interface it is automatically captured by PT-Node. PT-Node recognizes the start of a new
test report from its header and creates a new file on its internal storage.

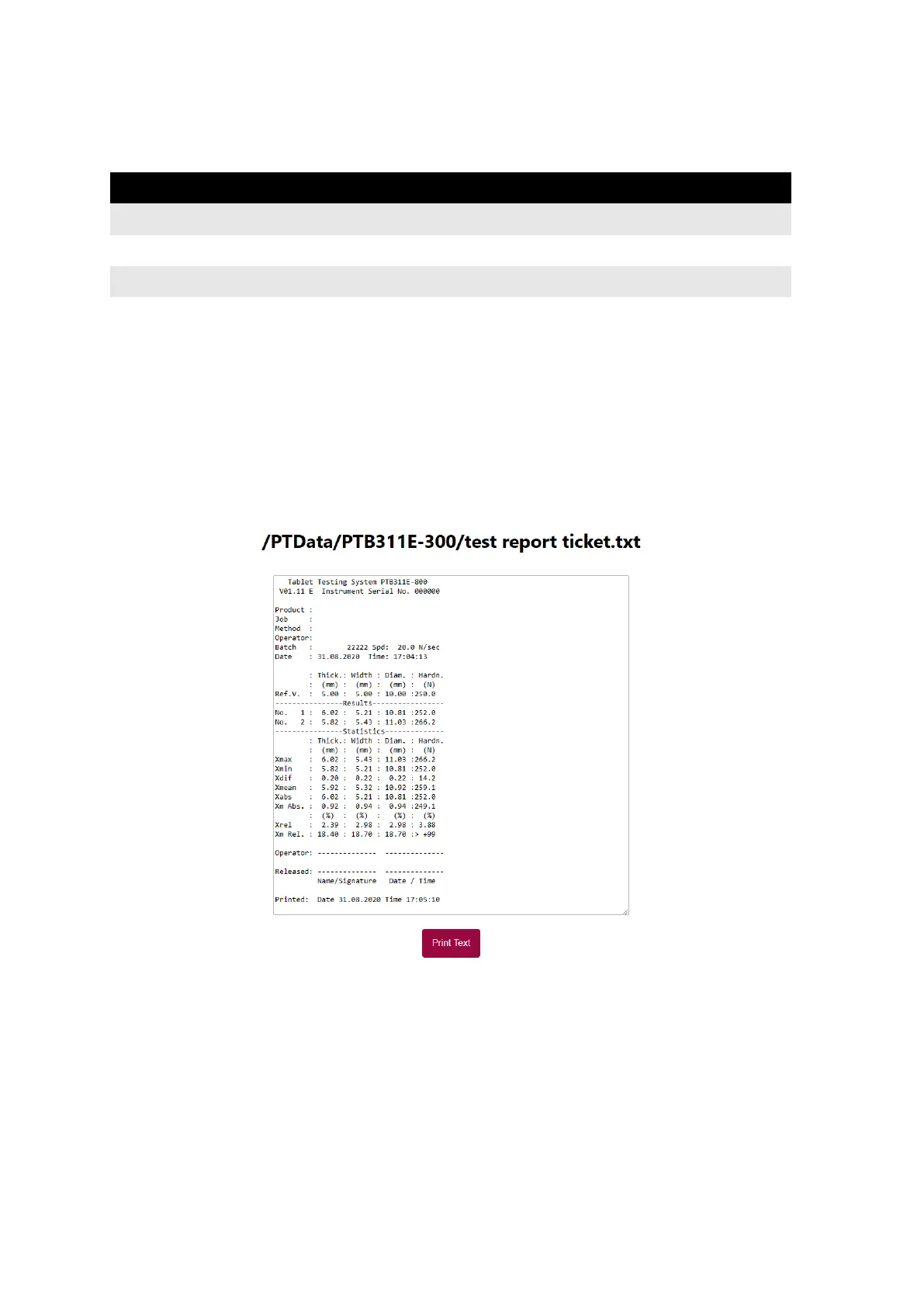

Figure 48: Example of a PTB 311E test report
Refer to the user manual of the instrument for more details about printing and the report
format.
