Pharma Test PT-Node - Ptf 100, Ptf 200, Ptf 300, Ptf 600; Section 5.6.1 Capturing Test Reports; Figure 59: Communication Cable Connection to PTF X00

Pharma Test Apparatebau AG
Operating Manual
B-24-00100_PT-NODE_v1.0e.docx Page 54 of 64
Section 5.6 PTF 100, PTF 200, PTF 300, PTF 600
Parameter
Specification
Instrument model name
PTF 100, PTF 200, PTF 300, PTF 600
Minimum firmware version
Connection
Serial 8pin D-Sub (female) plug labelled
“Printer” on the backside of the
instrument, cable part no. 34-01205
Output parameters
9600 bit/s, 8 data bits, no parity, 1 stop bit,
no handshake
Printouts captured
Result report, calibration reports
Section 5.6.1 Capturing Test Reports
Connect the communication cable (part no. 34-01205) to the port labeled “Printer” on the
backside of the instrument:

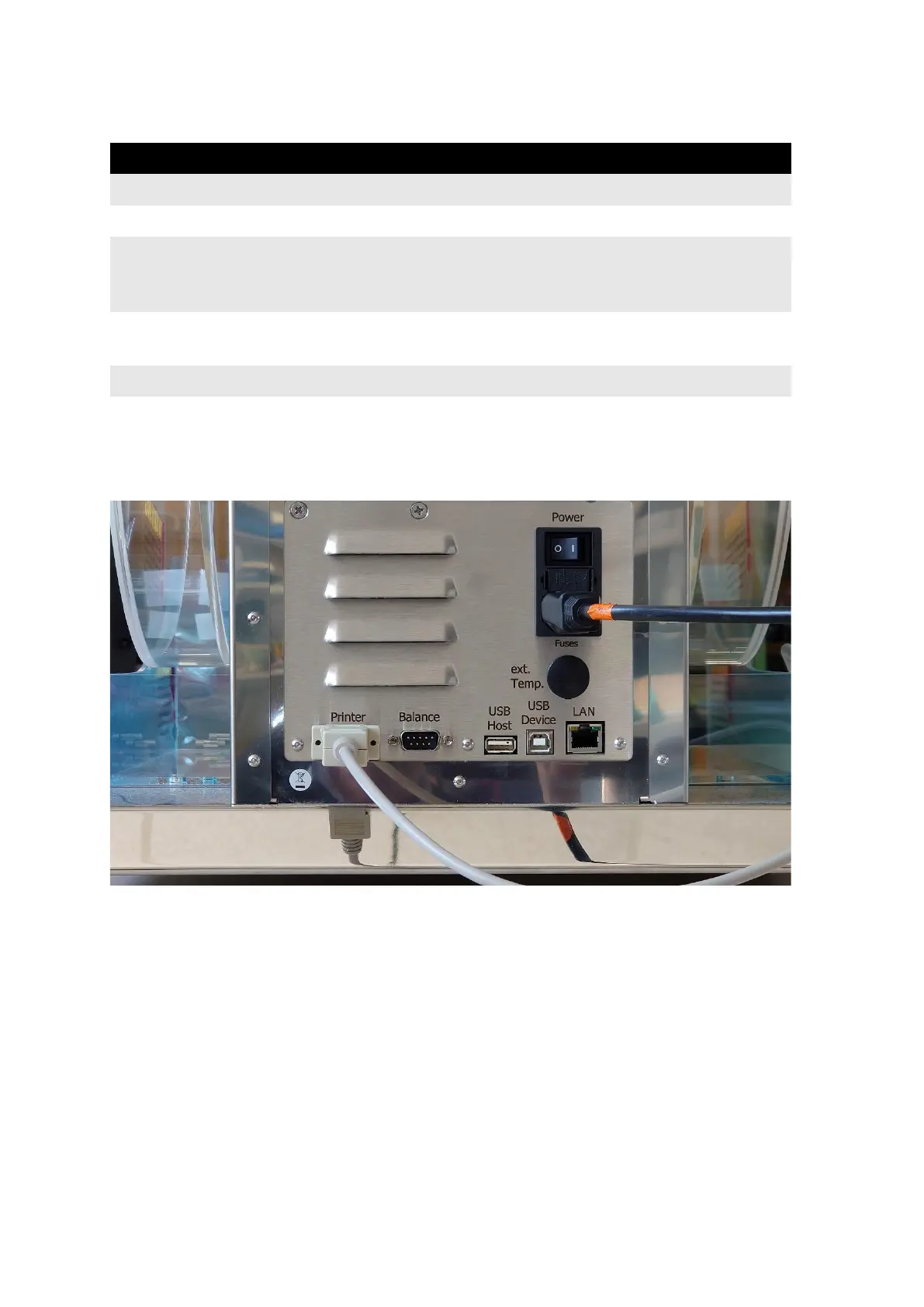

Figure 59: Communication cable connection to PTF x00
Connect the other side of the cable to one of the ports of PT-Node. Note the channel number
the port corresponds to.
