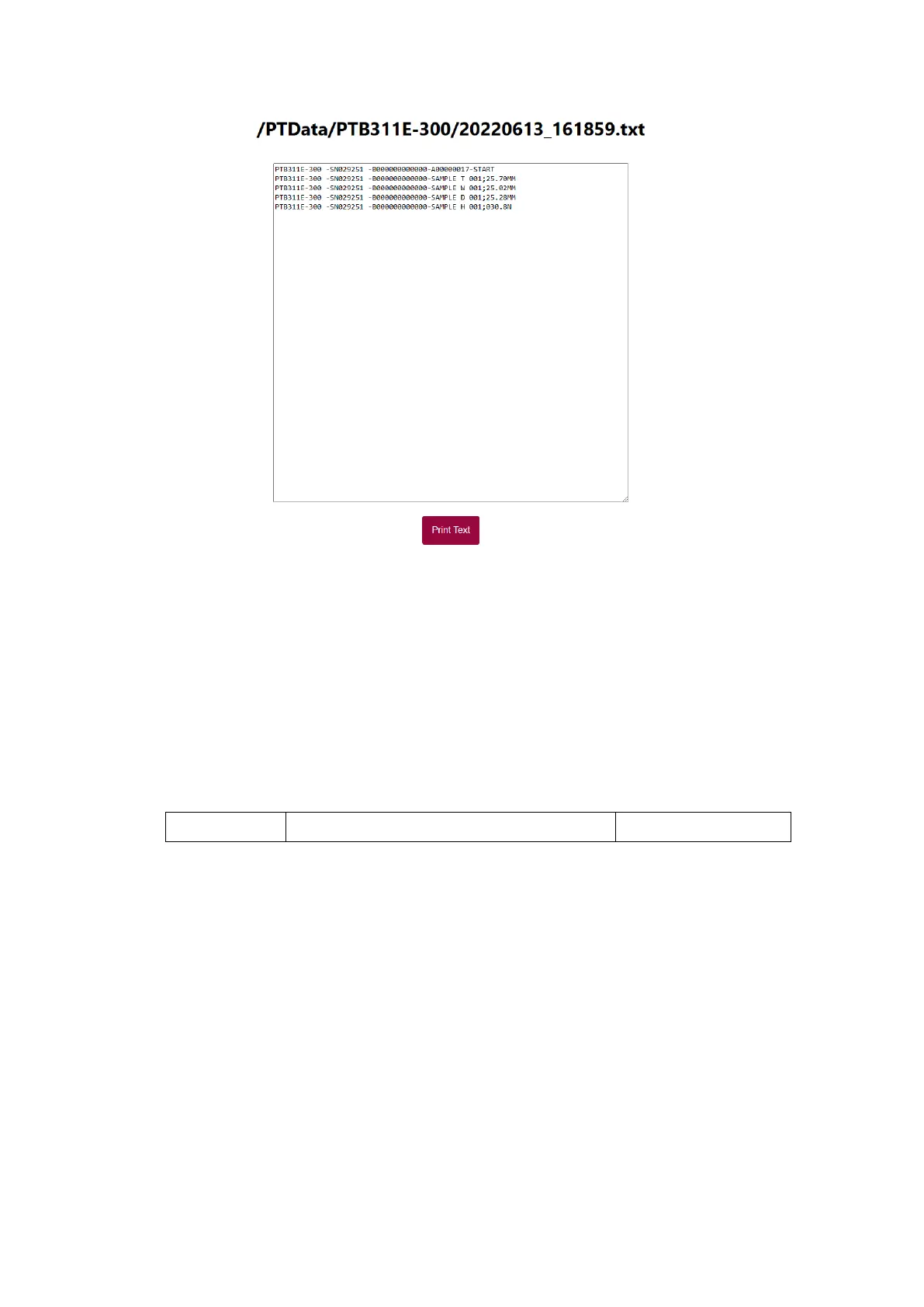

Figure 50: Example of a serial result of a PTB 311E instrument

5.3.1.2 Activating the Ticket Printer Printout

Set your instrument to print in the ticket printer format:

9. Turn on the instrument, the display shows all “0”

10. Enter the user password by pressing [CAL]+[0]+[1]

11. Press [CAL]+[3]+[0] to display the serial output selection menu

12. Use [.] (point) to toggle between the settings until you see this setting:

Number

Hardness

P r

b o n P

13. Press [*] (star) to confirm the selection
