Installing the Measurement Server Mounting Options
Installin
the Instrument
109

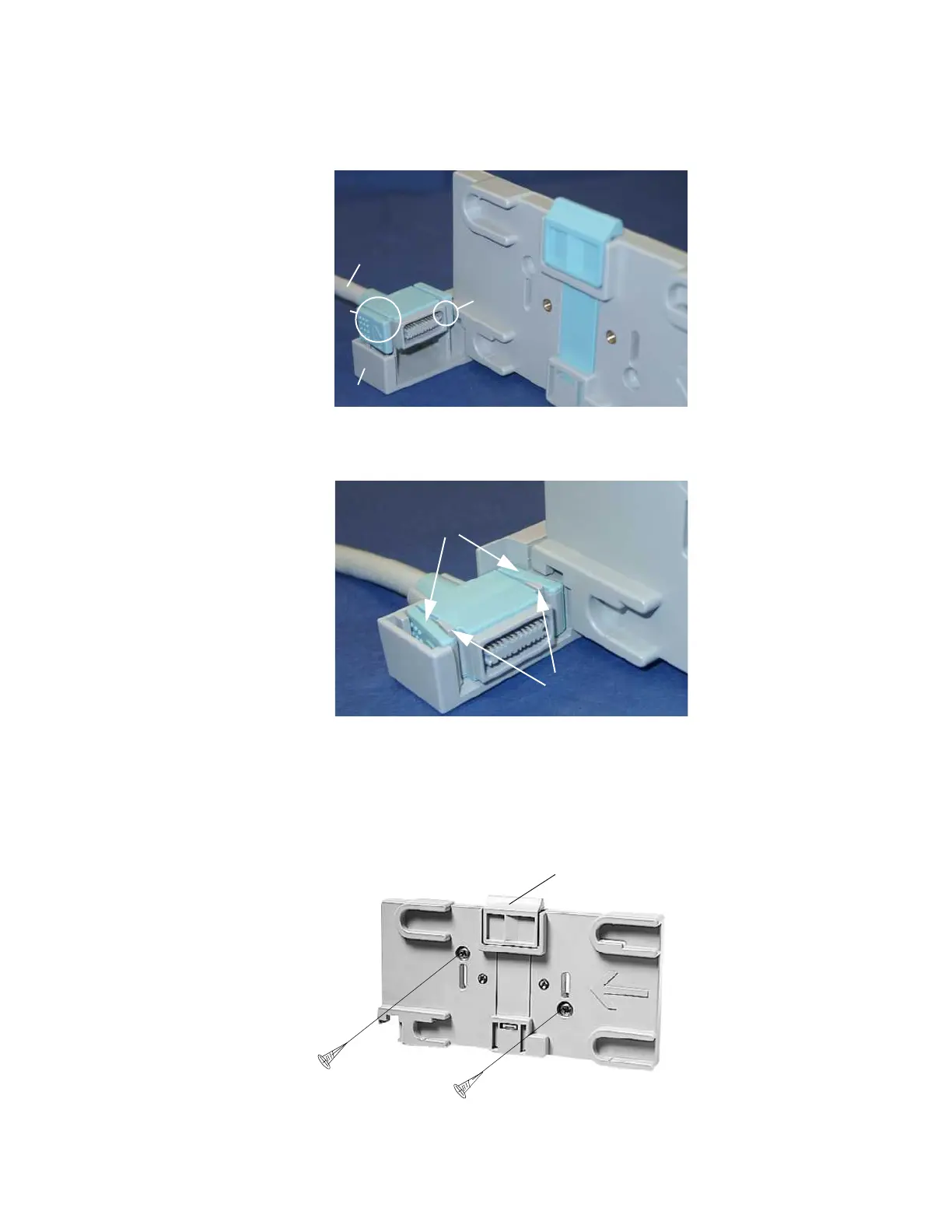

Step 3 Place the cable (1) on the clamp (2), as illustrated.Use the visual guide (3) and the
positioning notch (4) to ensure you have the cable correctly positioned.
Step 4 Squeeze open the side clips (5) and ease the cable into the clamp so that the clips
grip the gray mouldings (6).
Step 5 Press the cable down firmly to ensure that it is fully seated in the clamp.
NOTE Once fixed, do not remove the cable from the MSL clamp.
3
2
1
4
5
6
Latch
