Installing the Measurement Server Mounting Options
110
Installin
the Instrument
Step 6 Select two screws and suitable fixings appropriate to surface the material. If
necessary, mark the screw positions on the surface and drill suitable holes.
Step 7 Insert the 2 screws through the screw holes provided in the plate.
Step 8 Tighten the screws.

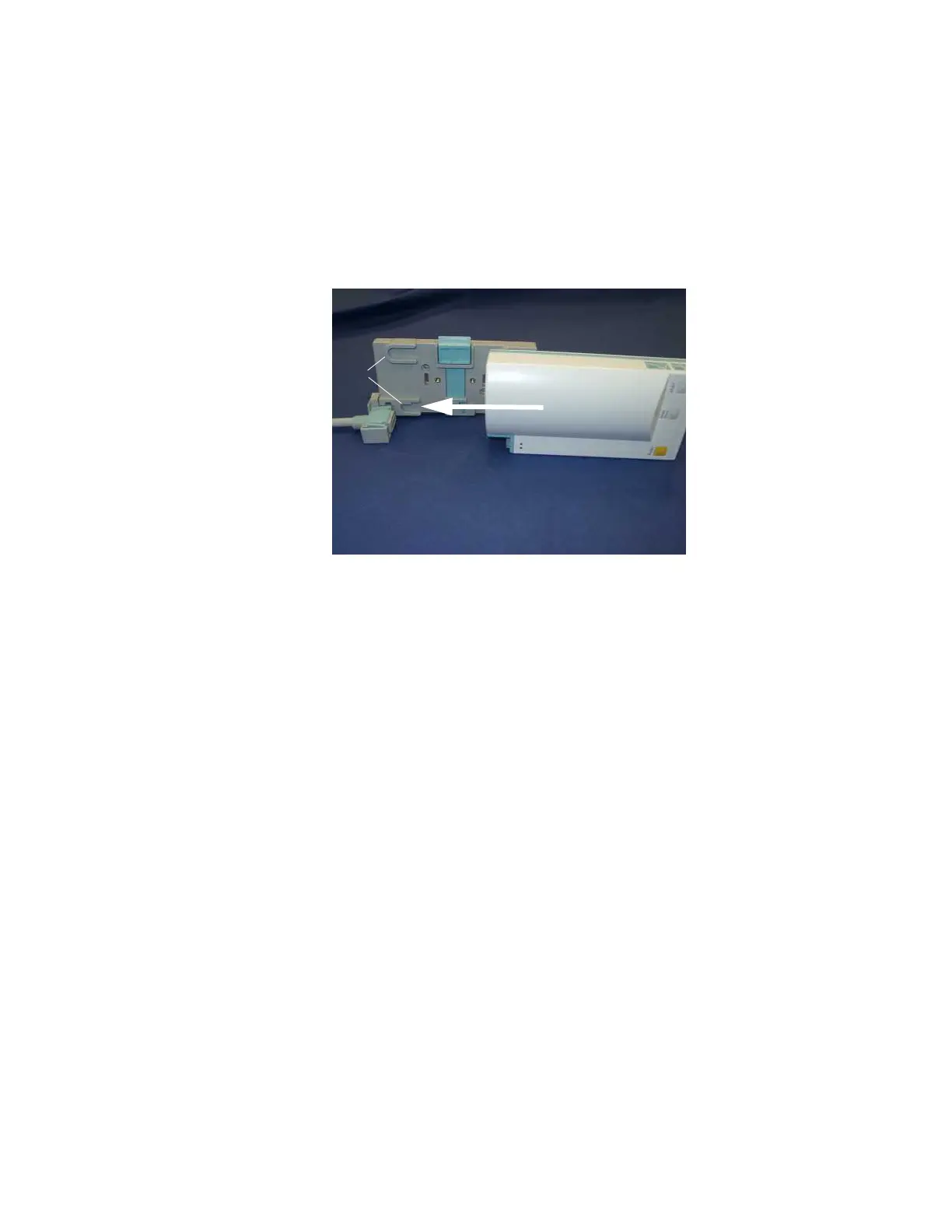

Step 9 Align the feet on the MMS with the locating shoes (7) on the mounting plate and
slide the MMS onto the mounting plate. The Server snap-fits onto the plate.
To release the Server, press and hold the latch (in the middle at the top of the mount)
away from the Server and slide it out.
7
