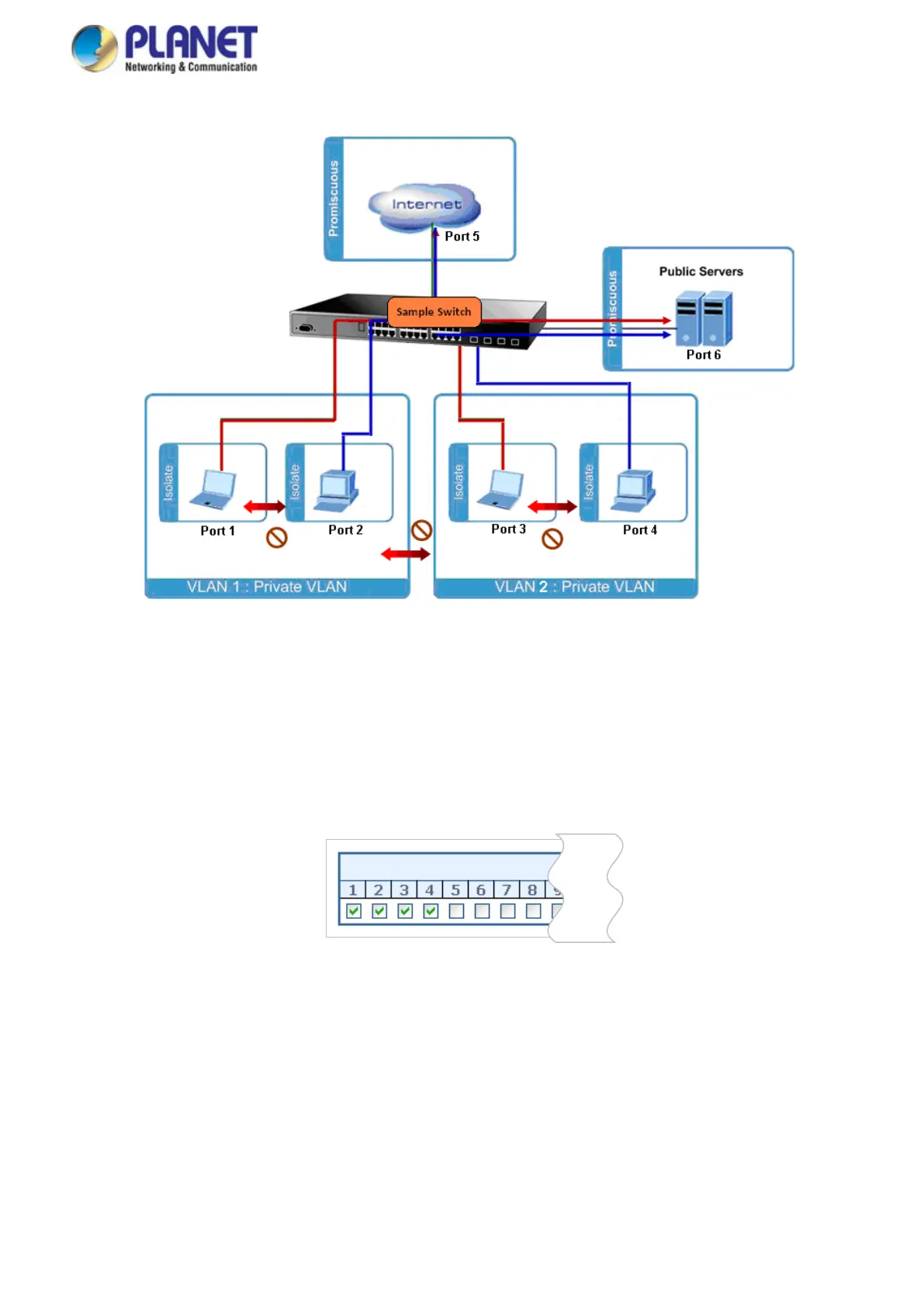

User’s Manual of GS-5220 LCD Series
216
Setup steps
1. Assign Port Mode
Set Port-1~Port-4 in Isolate port.
Set Port5 and Port-6 in Promiscuous port. The screen in Figure 4-6-17 appears.
Figure 4-6-17: The Configuration of Isolated and Promiscuous Port
