Buttons
: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click
"Save"
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.8.17 MVR Status
This page provides MVR status. The MVR Status screen in Figure 4-8-20 appears.

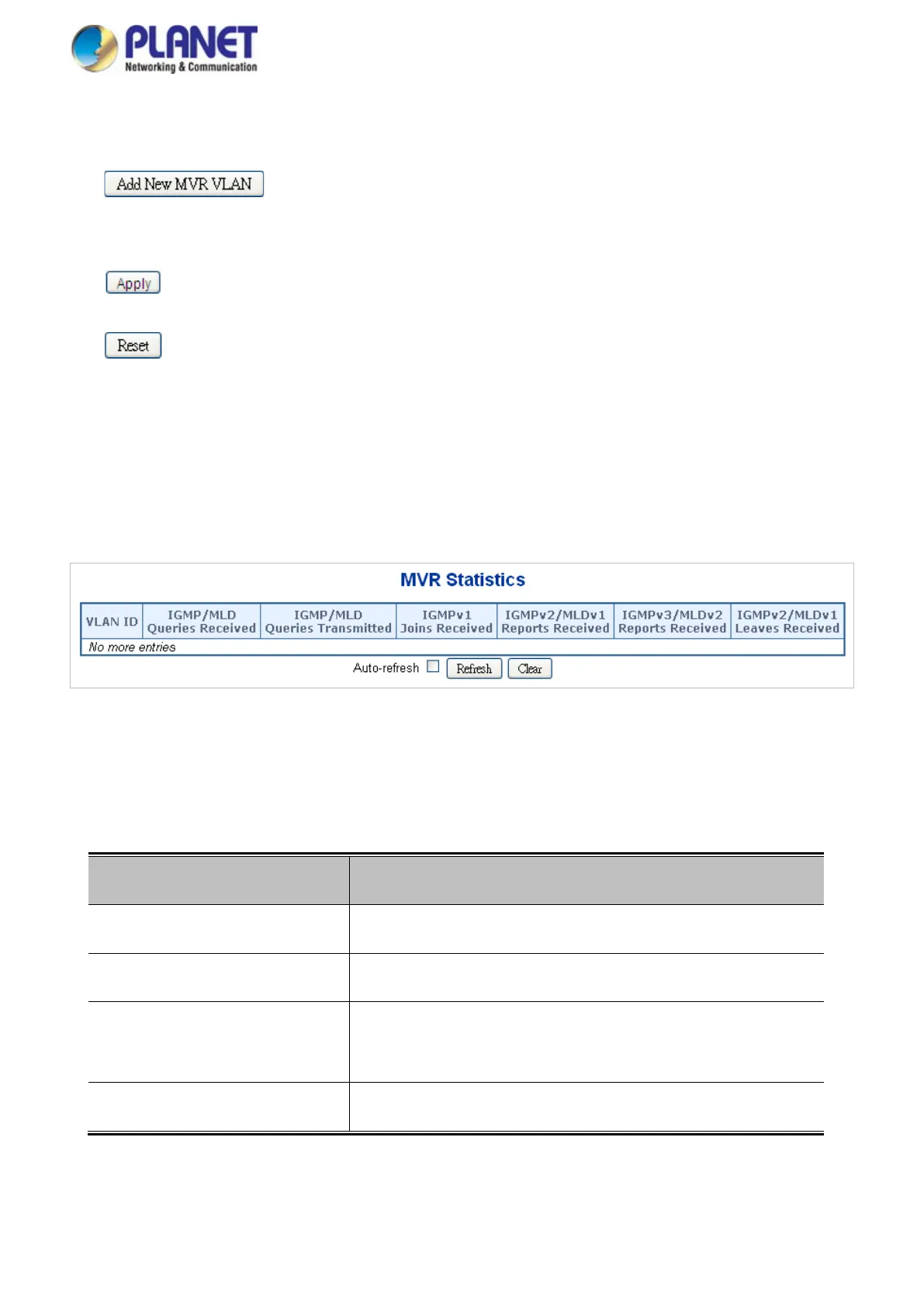

Figure 4-8-20: MVR Status Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
The Multicast VLAN ID.
• IGMP/MLD Queries Received
The number of Received Queries for IGMP and MLD, respectively.
• IGMP/MLD Queries
Transmitted
The number of Transmitted Queries for IGMP and MLD,
respectively.
• IGMPv1 Joins Received
The number of Received IGMPv1 Joins.
